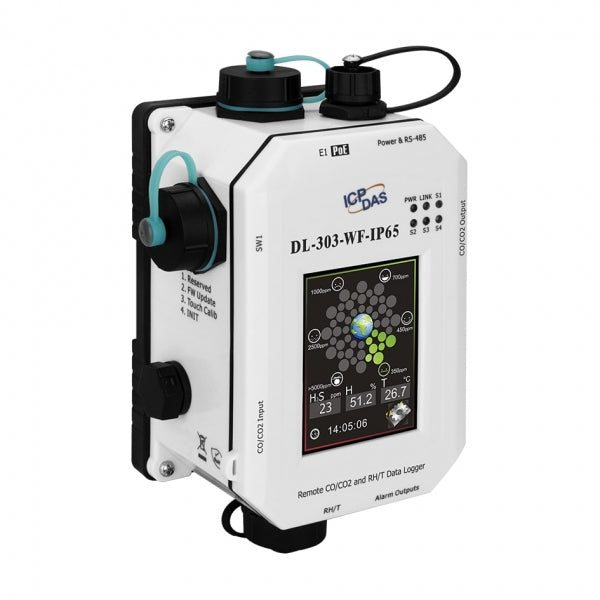

DL-303-WF-IP65

Ціна за запитом
IP65 Remote CO/CO2/Temperature/Humidity/Dew Point Data Logger with Ethernet/RS-485/Wi-Fi Interfaces and PoE (RoHS)

Specification

Construction

Construction ChassisPlastic Chassis
Mounting ConfigurationDesktop, Wall, DIN-Rail mount

Display

Display TypeLCD TFT
Diagonal2.8 "
Maximum resolution320x240 Dots

Supported Protocols

Industrial ProtocolsModbus TCP server, Modbus RTU slave, MQTT client, DCON slave

Ethernet

Total Ethernet1
10/100 Mbit/s1

System Power Input

Power over Ethernet (PoE)IEEE 802.3af
Input Voltage DC12...48 V

Interfaces

RS-4851

Wi-Fi

Wi-Fi Standard802.11b/g/n

Sensors

Measuring Range-10...+50 °С
Resolution0.1 °C
Accuracy (+/-)0.6 °C
Measuring Range0…100%
Resolution0 %
Types of gases and particles measured(CO2)

Operating Conditions

Operating Temperature-20...50 °C

Dimensions and weight

Width117 mm
Depth60 mm
Height170 mm
