Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | 19" Rackmount, Panel, Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP65 |
| Material Front Side (Panel) | Aluminum |
Display | |
| Display Type | LCD TFT |
| Diagonal | 19 " |
| Maximum resolution | 1028x1024 Dots |
| Aspect Ratio | 4:3 |
| Brightness | 350 Cd/m2 |
| Contrast Ratio | 1000~1 |
| Input Interface | DisplayPort, VGA, DVI |
Touch Screen | |
| Touch Screen Type | Capacitive |
| Interface | USB |
LED / Controls | |
| LED | 1xOn/Off LED, Power LED |
| Controls | KeyPad |
Connectors | |

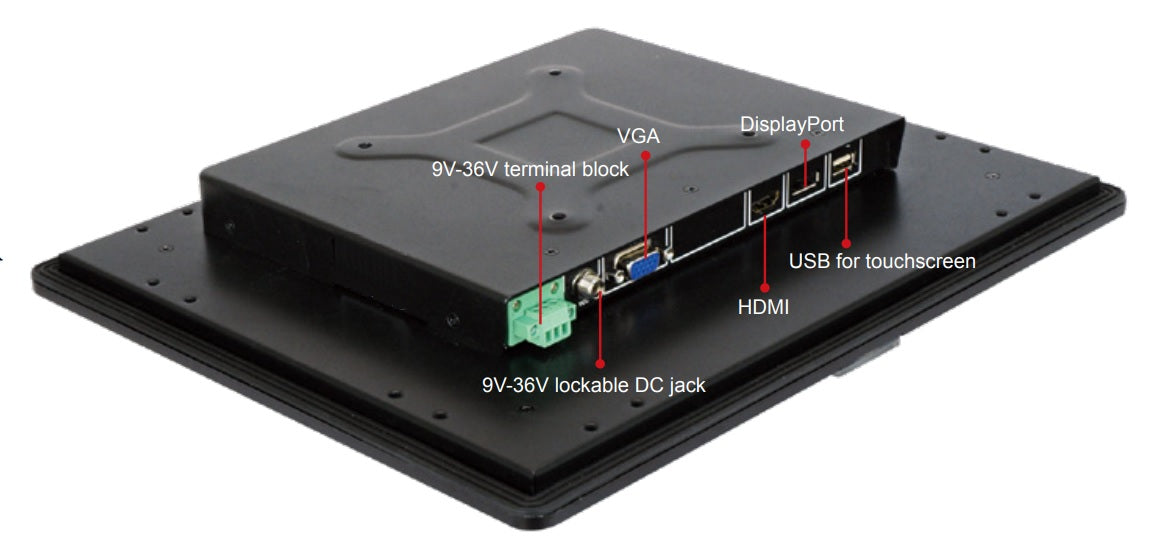

| Connectors | DVI, DB15 VGA, DC Input, Display Port, Console Port USB, Terminal block |
System Power Input | |
| Input Voltage DC | 9...36 V |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Operating Conditions | |
| Operating Temperature | -20...60 °C |
Dimensions and weight | |
| Width | 447.4 mm |
| Height | 372.4 mm |
| Depth | 49.57 mm |
Standards and Certifications | |
| Certifications | CE, FCC |
