Construction | |
| Construction Chassis | Metal Chassis with Aluminium Heatsink |
| Mounting Configuration | 19" Rackmount, Panel, Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP65 |
Display | |
| Display Type | LCD TFT |
| Diagonal | 18.5 " |
| Maximum resolution | 1366x768 Dots |
| Brightness | 400 Cd/m2 |
| Contrast Ratio | 1000~1 |
Touch Screen | |
| Touch Screen Type | Capacitive |
LED / Controls | |
| Controls | Control Buttons |
Connectors | |

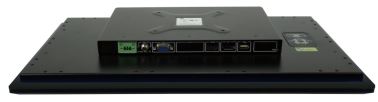

| Connectors | DB9, DB15 VGA, HDMI, 1xUSB, DC Input, Display Port |
System Power Input | |
| Input Voltage DC | 9...36 V |
Operating Conditions | |
| Operating Temperature | -20...60 °C |
Dimensions and weight | |
| Width | 228.2 mm |
| Height | 468.8 mm |
| Depth | 48.9 mm |
Standards and Certifications | |
| Certifications | CE, FCC |
