DM2-104E

Name: DM2-104E
Brand: IEI
SKU: 11600500
Availability: InStock

IEI

Ціна за запитом

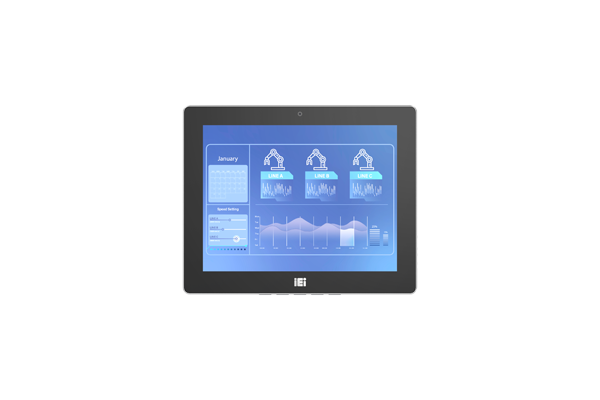

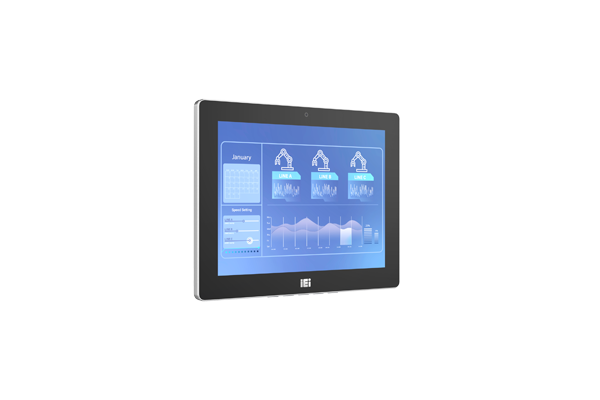

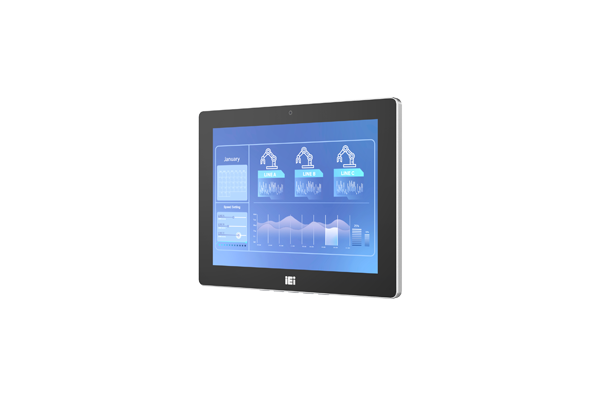

Industrial 10.4" TFT LCD Monitor, 1024x768, P-Cap touch, VGA, HDMI, DP, 5xUSB 3.2, Speaker, Camera, 9-36VDC-in

Специфікація

Specification

Construction
Construction Chassis	Metal Chassis
Mounting Configuration	Panel, Wall VESA 100
Protection Level of Front Side (Panel)	IP65
Display
Display Type	LCD
Diagonal	10.4 "
Maximum resolution	1024x768 Dots
Aspect Ratio	4:3
Brightness	350 Cd/m2
Contrast Ratio	1000~1
Input Interface	VGA, HDMI, DisplayPort
Touch Screen
Touch Screen Type	Capacitive
LED / Controls
LED	Power LED
Controls	On/Off
Additional Functions
Camera Frontside	1 MP
Connectors

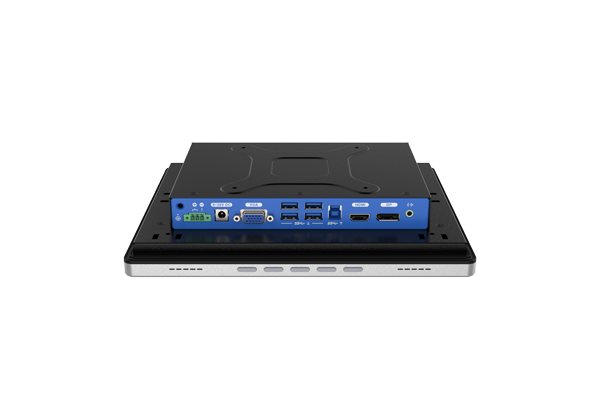

Connectors	DB15 VGA, HDMI, Display Port, Line Out, 5xUSB
System Power Input
Input Voltage DC	9...36 V
Operating Conditions
Operating Temperature	-20...60 °C
Humidity	10-95%
Dimensions and weight
Width	256.6 mm
Height	208.2 mm
Depth	49.3 mm
