Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Panel, Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP65 |
Display | |
| Display Type | LCD |
| Diagonal | 15 " |
| Maximum resolution | 1024x768 Dots |
| Aspect Ratio | 4:3 |
| Brightness | 400 Cd/m2 |
| Contrast Ratio | 2500~1 |
| Input Interface | VGA, DisplayPort, HDMI |
Touch Screen | |
| Touch Screen Type | Capacitive |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off |
Additional Functions | |
| Camera Frontside | 1 MP |
Connectors | |

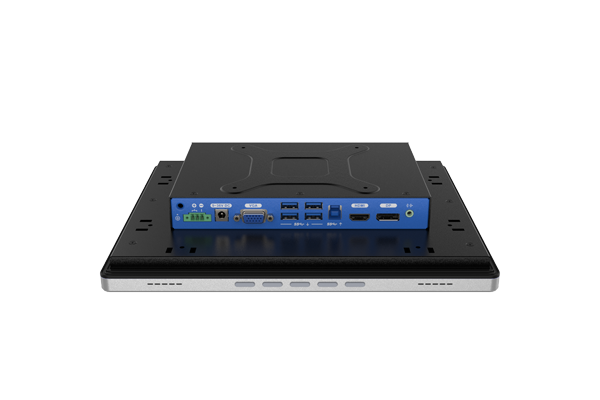

| Connectors | DB15 VGA, HDMI, Display Port, Line Out, 5xUSB |
System Power Input | |
| Input Voltage DC | 9...36 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
Operating Conditions | |
| Operating Temperature | -20...60 °C |
| Humidity | 10-95% |
Dimensions and weight | |
| Width | 353.8 mm |
| Height | 287.08 mm |
| Depth | 50.3 mm |
Standards and Certifications | |
| Certifications | CE/FCC |
