Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Panel, Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP65 |
Display | |
| Display Type | LCD |
| Diagonal | 19 " |
| Maximum resolution | 1280x1024 Dots |
| Aspect Ratio | 5:4 |
| Brightness | 450 Cd/m2 |
| Contrast Ratio | 1000~1 |
| Input Interface | DisplayPort, HDMI, VGA |
Touch Screen | |
| Touch Screen Type | Capacitive |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off |
Connectors | |

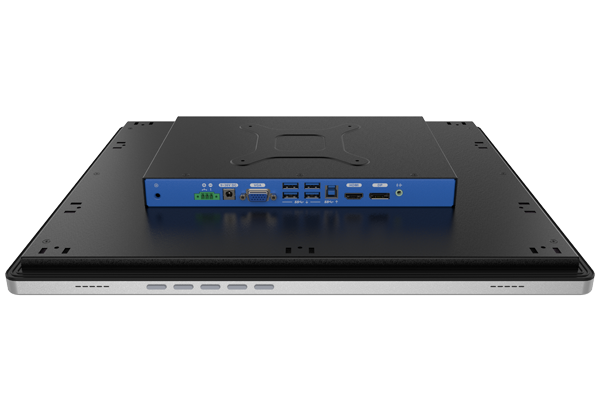

| Connectors | 1xUSB, HDMI, DB15 VGA, Display Port, Line Out |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
| Input Voltage AC | 9...36 V |
Operating Conditions | |
| Operating Temperature | -20...60 °C |
| Humidity | 10-95% |
Dimensions and weight | |
| Width | 424.5 mm |
| Height | 361.57 mm |
| Depth | 51.2 mm |
