Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Panel, Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP65 |
Display | |
| Display Type | LCD |
| Diagonal | 12.1 " |
| Maximum resolution | 1280x800 Dots |
| Aspect Ratio | 16:10 |
| Brightness | 1000 Cd/m2 |
| Contrast Ratio | 1000~1 |
| Input Interface | HDMI, VGA, DisplayPort |
Touch Screen | |
| Touch Screen Type | Capacitive |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off |
Connectors | |

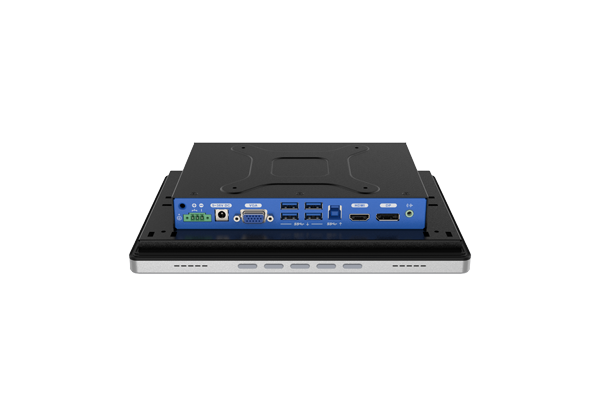

| Connectors | DB15 VGA, HDMI, Display Port, 1xUSB, Line Out |
System Power Input | |
| Input Voltage DC | 9...36 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
Operating Conditions | |
| Operating Temperature | -20...60 °C |
| Humidity | 10-95% |
Dimensions and weight | |
| Width | 298 mm |
| Height | 218.59 mm |
| Depth | 49.3 mm |
