Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | DIN-Rail mount |
| Type | Fanless |
CPU | |
| СPU Generation/Family | Raptor Lake |
| Processor Installed | Intel Core i3-1320PE |
| Socket | CPU onboard |
| Max CPU frequency | 4.5 GHz |
Chipset | |
| Chipset | Intel SoC |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| ECC | No |
| Default on Board Memory | 8 GB |
| Maximum Memory | 64 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU, Intel UHD Graphics |
| Interfaces | HDMI, DisplayPort |
Ethernet | |
| Controller Type | Intel i226-LM, Intel i226V |
| Total Ethernet | 3 |
| 2,5 Gbit/s | 3 |
Interfaces | |
| COM Total | 4 |
| RS-232 | 2 |
| RS-422/485 | 2 |
| USB Total | 6 |
| USB 2.0 | 4 |
| USB v3.x | 2 |
Drive interfaces | |
| SATA 3 | 1 |
| M.2 | 1 |
Storage Cage | |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 3 |
| M.2 | 3 |
| M.2 Form Factor | 2280 M, 2230 E, 3052 B, 3042 B |
| SIM Card slots | Yes, 1 |
LED / Controls | |
| LED | Power LED, SSD LED |
| Controls | 1xReset |
Connectors | |

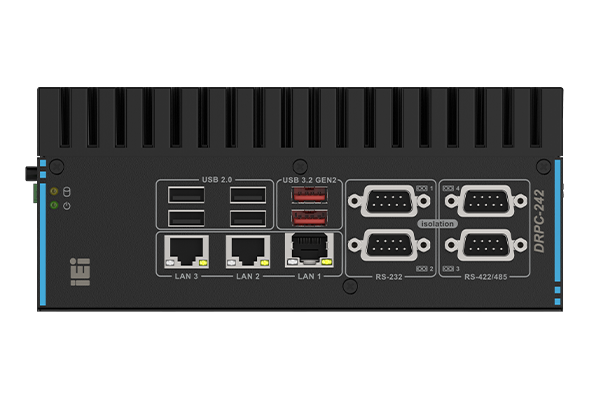

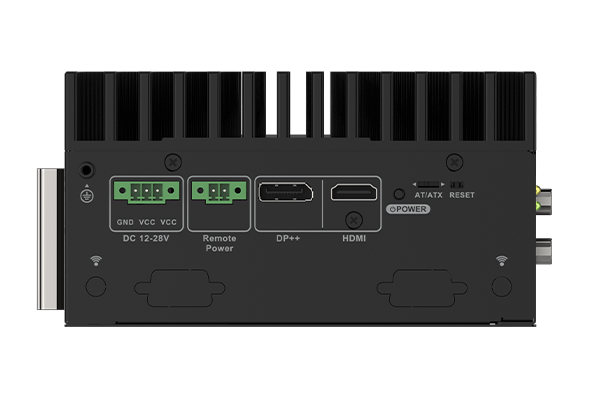

| Connectors | 6xUSB, 3xRJ45 Ethernet, HDMI, Display Port, 4xDB9, DC input (terminal block) |
System Power Input | |
| Input Voltage DC | 12...28 V |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows 11, Windows 10, Linux OS |
Dimensions and weight | |
| Width | 190 mm |
| Height | 81 mm |
| Depth | 150 mm |
Operating Conditions | |
| Operating Temperature | -20...60 °C |
| Humidity | 10-95% |
| Vibration | 10-500 Hz. 1.04 Grms. random. 1 hr/axis (SSD) |
| Shock | Half-sine wave shock 5G. 11ms. 3 shocks per axis (SSD) |
Standards and Certifications | |
| Certifications | CE/FCC |
