Construction | |
| Construction Chassis | Metal Chassis with Aluminium Heatsink |
| Mounting Configuration | Built-in, Panel |
| Type | Fan |
CPU | |
| Processor Installed | Intel Core i3-6102E |
| Max CPU frequency | 1.9 GHz |
Chipset | |
| Chipset | Intel QM170 PCH |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| Maximum Memory | 32 GB |
Graphic | |
| Graphic Controller | Integrated in CPU, Intel HD 530 graphics |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| USB Total | 3 |
| USB v3.x | 1 |
Audio | |
| Audio Controller | Realtek ALC892 |
Drive interfaces | |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Mini-PCIe/Mini Card | 1 |
| SIM Card slots | 1 |
Antenna characteristics | |
| Cellular interfaces | 3G |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

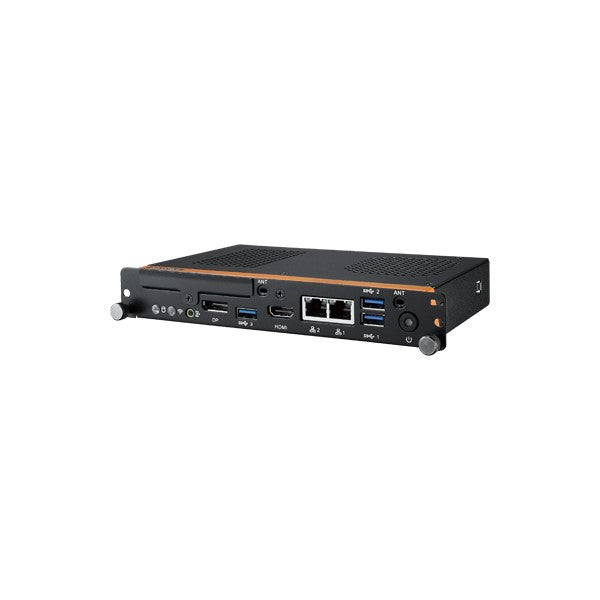

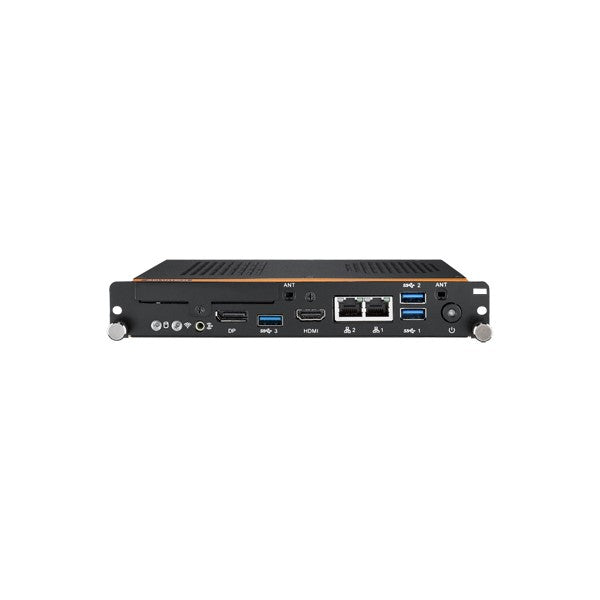

| Connectors | HDMI, 2xRJ45 Ethernet, 3xUSB, Line Out, DC Input, Display Port, JAE TX25A (OPS) |
System Power Input | |
| Input Voltage DC | 12...19 V |
Software | |
| Operating System Compatibility | Windows 7, Linux OS, Windows 8.1, Windows 10 |
Dimensions and weight | |
| Width | 200 mm |
| Height | 30 mm |
| Depth | 118 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
| Vibration | 0.2Grms. IEC 60068-2-64. random. 5-500 Hz.1hr/axis |
Standards and Certifications | |
| Certifications | CE/FCC, FCC Class B |
| Safety | CCC, CB, UL, BSMI |
