DS2M-01GI81AW2SB

DS2M-01GI81AW2SB

InnoDisk
Ціна за запитом

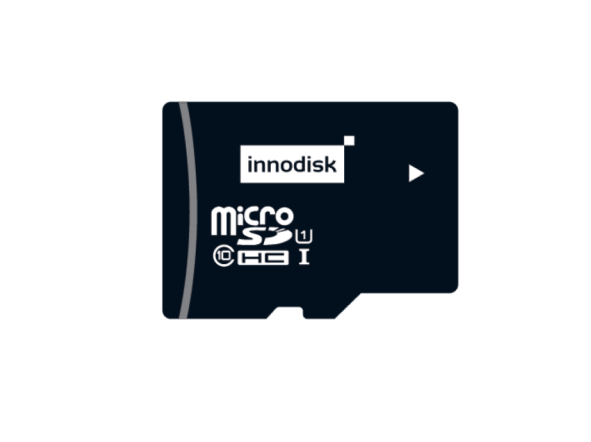

1GB Industrial Micro SD Card, Innodisk, SLC, Single Channel, R/W 14 / 8 MB/s, Wide Temperature -40..+85 C

Specification

Flash Disk

TypemicroSD
Connector / Socket8-pin microSD
ConstructionBuild in Chassis
InterfaceSD 2.0
Type flash memorySLC
Capacity1 GB
Transfer Rate Maximum Read23 MB/s
Transfer Rate Maximum Write18 MB/s

System Power Input

Input Voltage DC3.3...3.3 V
Current50 mA

Operating Conditions

Operating Temperature-40...85 °C
Humidity10-95%
Vibration7 Hz to 2K Hz. 20G. 3 axes (IEC 68-2-6)
ShockDuration: 0.5ms. 1500 G. 3 axes (IEC 68-2-27)
MTBF3000000 h
