DSCA30-09E

Name: DSCA30-09E
Brand: Dataforth
SKU: 01363400
Availability: InStock

Dataforth

Ціна за запитом

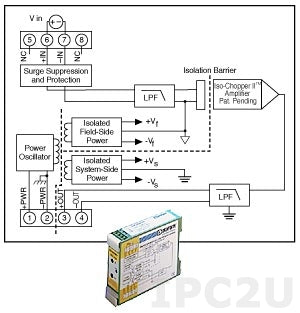

Isolated Analog Voltage Input Module, Input 0...+100 mV, Output 0...20 mA

Специфікація

Specification

Analog Input
Total channels of analog input	1
Voltage range	0...100 mV
Analog Output
Channels of analog input	1
Current range	0...20 mA
Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	DIN-Rail mount
Connectors
Connectors	Screw Terminal
System Power Input
Input Voltage DC	15...30 V
Dimensions and weight
Width	22.5 mm
Depth	105 mm
Height	75 mm
Operating Conditions
Operating Temperature	-40...80 °C
Standards and Certifications
Certifications	CE
EMI	EN 61000-6-4
EMS	IEEE C37.90.1, EN 61000-6-2
Oil And Gas	Class I Div.2 Groups A, B, C, D
