DSCA32-01C

Name: DSCA32-01C
Brand: Dataforth
SKU: 01360100
Availability: InStock

Dataforth

Ціна за запитом

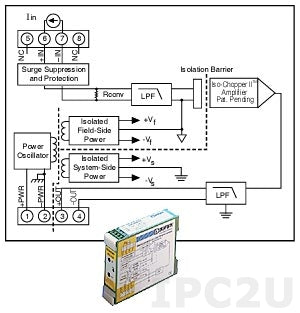

Isolated Current Input Module, Input 4...20 mA, Output 4...20 mA

Специфікація

Specification

Analog Input
Total channels of analog input	1
Current range	4...20 mA
Analog Output
Channels of analog input	1
Current range	4...20 mA
Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	DIN-Rail mount
Connectors
Connectors	Screw Terminal
System Power Input
Input Voltage DC	15...30 V
Dimensions and weight
Width	22.5 mm
Depth	105 mm
Height	75 mm
Operating Conditions
Operating Temperature	-40...80 °C
Standards and Certifications
Certifications	CE
EMI	EN 61000-6-4
EMS	IEEE C37.90.1, EN 61000-6-2
Oil And Gas	Class I Div.2 Groups A, B, C, D
