DSCA33-05A

Name: DSCA33-05A
Brand: Dataforth
SKU: 01409400
Availability: InStock

Dataforth

Ціна за запитом

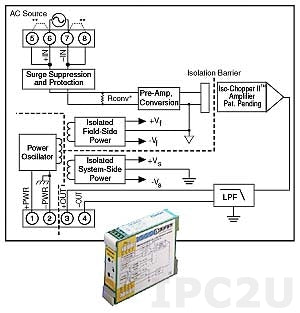

Isolated True RMS Input Signal Module, Input 0...300 V, Output 0...+5 V

Специфікація

Specification

Analog Input
Total channels of analog input	1
Voltage range	0...300 V
Analog Output
Channels of analog input	1
Voltage range	0...5 V
Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	DIN-Rail mount
Connectors
Connectors	Screw Terminal
System Power Input
Input Voltage DC	19...29 V
Dimensions and weight
Width	22.5 mm
Depth	105 mm
Height	75 mm
Operating Conditions
Operating Temperature	-40...80 °C
Standards and Certifications
Certifications	CE
EMI	EN 61000-6-4
EMS	IEEE C37.90.1, EN 61000-6-2
Oil And Gas	Class I Div.2 Groups A, B, C, D
