DSCA36-02E

Name: DSCA36-02E
Brand: Dataforth
SKU: 01359200
Availability: InStock

Dataforth

Ціна за запитом

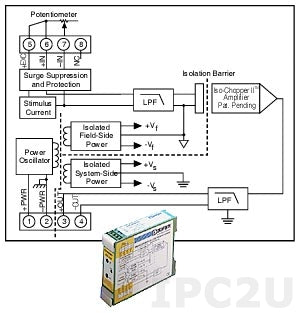

Isolated Potentiometer Input Module, Input 0...500 Ohm, Output 0...20 mA

Специфікація

Specification

Analog Input
Potentiometer	0...500 Ohm
Total channels of analog input	1
Analog Output
Channels of analog input	1
Current range	0...20 mA
Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	DIN-Rail mount
Connectors
Connectors	Screw Terminal
System Power Input
Input Voltage DC	15...30 V
Dimensions and weight
Width	22.5 mm
Depth	105 mm
Height	75 mm
Operating Conditions
Operating Temperature	-40...80 °C
Standards and Certifications
Certifications	CE
EMI	EN 61000-6-4
EMS	IEEE C37.90.1, EN 61000-6-2
Oil And Gas	Class I Div.2 Groups A, B, C, D
