Camera | |

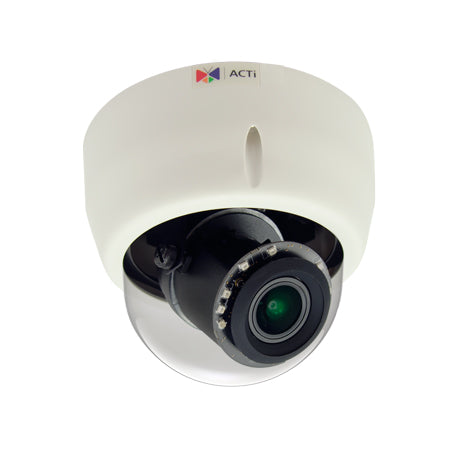

| Form Factor | Dome |
| Maximum Resolution | 3 MP |
| Day&Night Mode | IR Cut Filter Remove |
| Optical Magnification | 4.3~. |
| Focus Control | Auto |
| Video Analytics Functions | Motion Detection |
| Max Resolution Frame rate | 20 fps |
Supported Protocols | |
| Managment Protocols | SMTP, HTTP, TCP, UDP, DHCP, DNS, SNMP, IGMP, FTP, NTP, DDNS, ARP, Bonjour, ICMP |
| Reservation protocols | RSTP |
| Security Protocols | Password Protection, IP Address Filtering, IEEE 802.1X Network Access Control, HTTPS |
Digital Input | |
| Total channels of digital input | 2 |
Digital Output | |
| Total channels of digital output | 2 |
Connectors | |
| Connectors | RJ45, MicroSD card slot, Terminal block |
System Power Input | |
| Power over Ethernet (PoE) | PoE |
| Power Consumption | 7.84 W |
Dimensions and weight | |
| Height | 123 mm |
Operating Conditions | |
| Operating Temperature | -20...50 °C |
Standards and Certifications | |
| Certifications | CE, FCC |
| EMI | EN 55022 Class B, FCC Part 15 Subpart B Class B |
| EMS | EN 55024 |
| Vandal Resistance | EN 62262, IK09 level |
