Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Desktop, Wall, Wall VESA 50 |
| Protection Level of Chassis | IP30 |
| Type | Fanless |
CPU | |
| Processor Installed | Intel Celeron N3350 |
| Socket | CPU onboard |
| Max CPU frequency | 2.4 GHz |
Memory | |
| Form-factor | DDR3 |
| Default on Board Memory | 4 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| USB Total | 2 |
| USB 2.0 | 1 |
| USB v3.x | 1 |
Extension Slots | |
| Total | 1 |
| Mini-PCIe/Mini Card | 1 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

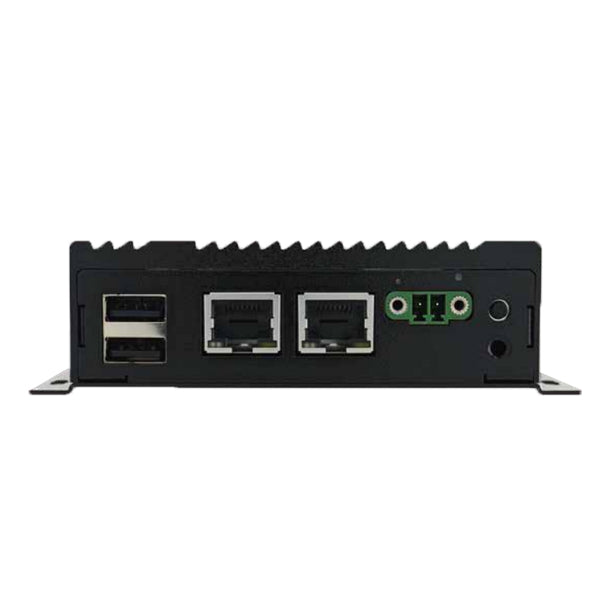

| Connectors | 2xRJ45 Ethernet, 2xUSB |
System Power Input | |
| Input Voltage DC | 9...36 V |
Software | |
| Operating System Compatibility | Linux OS, Ubuntu, Windows IoT Enterprise 10 |
Dimensions and weight | |
| Width | 115 mm |
| Height | 90 mm |
| Depth | 31 mm |
Operating Conditions | |
| Operating Temperature | 0...55 °C |
Standards and Certifications | |
| Certifications | CE/FCC |
| Vibration And Shock | IEC 60068-2-27, IEC 60068-2-64 |
