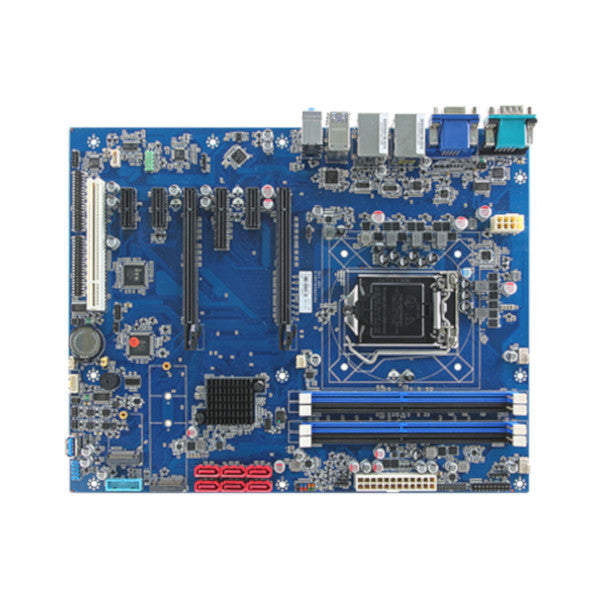

EAX-C246P-A11R

Name: EAX-C246P-A11R
Brand: Avalue
SKU: 56768400
Availability: InStock

Avalue

Ціна за запитом

ATX industrial motherboard LGA1151W Socket 8th Gen. Intel Core i7/i5/i3/Celeron/Xeon/Pentium with C246, 4x288-pin DIMM DDR4, VGA, HDMI, DP, 6xSATA3, 10xCOM, 12xUSB, 2xGbE LAN, 1xPCI, 1xPCIex16 or 2xPCIex8 by BOM, 1xPCIe x4, 3xPCIe x1, 16bit DIO

Специфікація

Specification

System Architecture
Form Factor	ATX
CPU
Socket	LGA1151
Chipset
Chipset	Intel C246
Memory
Socket Type	4xDDR4 DIMM 288pin
ECC	Yes
Maximum Memory	64 GB
Ethernet
Controller Type	Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet	2
10/100/1000 Mbit/s	2
Interfaces
COM Total	10
RS-232	8
RS-232/422/485	2
USB Total	8
Drive interfaces
RAID Levels	1, 5, 10
Extension Slots
PCI Express x16	2
PCI Express x4	1
PCI Express x1	3
M.2	2
PCI	1
Connectors

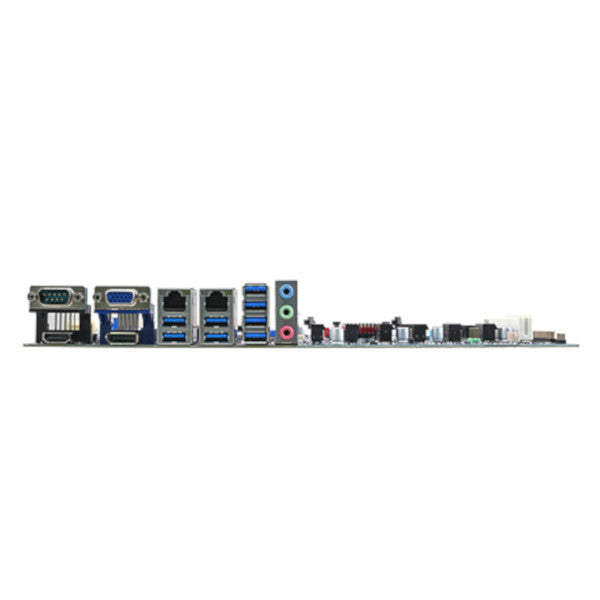

Connectors	DB15 VGA, HDMI, 2xRJ45 Ethernet, 8xUSB, Mic In, Line In, Line Out, Display Port
Dimensions and weight
Width	304.8 mm
Length	243.84 mm
