Construction | |
| Construction Chassis | Metal Chassis |
CPU | |
| CPU Support Type | Core i5, Core i7, Core i3 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| Maximum Memory | 32 GB |
Graphic | |
| Graphic Controller | Integrated in Chipset |
Ethernet | |
| Controller Type | Intel i210AT 10/100/1000 Mbps, Intel i219-LM |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| USB Total | 6 |
| USB 2.0 | 2 |
| USB v3.x | 4 |
Storage Cage | |
| 2.5" Cage Intenal | 1 |
Connectors | |

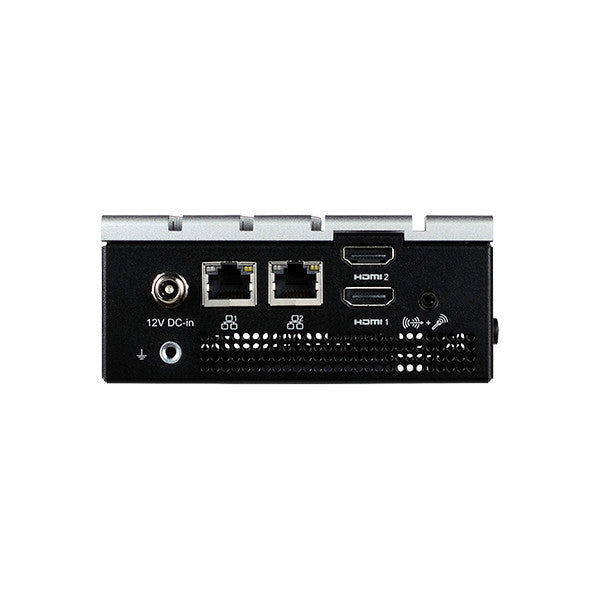

| Connectors | HDMI, 2xRJ45 Ethernet, 6xUSB |
System Power Input | |
| Input Voltage DC | 12...12 V |
Software | |
| Operating System Compatibility | Windows IoT Enterprise 10 |
Dimensions and weight | |
| Width | 115 mm |
| Height | 111 mm |
| Depth | 48.7 mm |
Operating Conditions | |
| Operating Temperature | -20...40 °C |
| Vibration | IEC68-2-64 |
| Shock | Half sine wave 3G. 11ms. 3 shock per axis |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
