Construction | |
| Mounting Configuration | Desktop, Wall VESA 100 |
| Type | Fanless |
CPU | |
| Processor Installed | Vortex86MX+ |
| Socket | CPU onboard |
| Max CPU frequency | 0.93 GHz |
Memory | |
| Form-factor | DDR2 |
| Default on Board Memory | 1 GB |
| Assembly | Fixed on Board |
Graphic | |
| Graphic Controller | Integrated in Chipset |
Ethernet | |
| Total Ethernet | 1 |
| 10/100 Mbit/s | 1 |
Interfaces | |
| COM Total | 3 |
| RS-232 | 3 |
| USB Total | 3 |
| USB 2.0 | 3 |
Digital Input-Output | |
| Channels of DIO | 24 |
Drive interfaces | |
| SD Slots | 1 |
Connectors | |

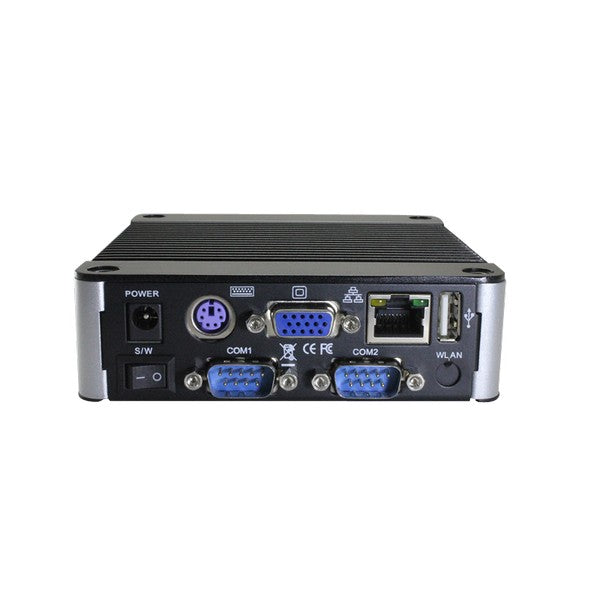

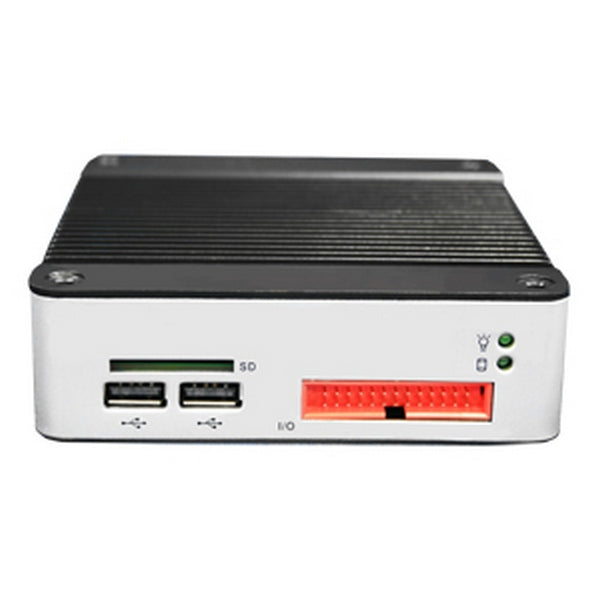

| Connectors | 3xDB9, DB15 VGA, PS/2 Keyboard/Mouse, RJ45 Ethernet, 3xUSB, DC Input, 26-pin GPIO |
System Power Input | |
| Input Voltage DC | 8...15 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
| Output Power | 22.5 W |
Software | |
| Operating System Compatibility | Windows XP, Windows XP Embedded, Debian 4.0, Debian 5.0, Ubuntu 8.04, Ubuntu 8.10, Ubuntu 9.04, Ubuntu 10.04, Edubuntu 9.04 (Ubuntu 8.10 base), Easy Peasy 8.10, Puppy 4.2.1, Puppy 4.1.2, WattsOS2 Warp30, Windows Embedded CE |
Dimensions and weight | |
| Width | 115 mm |
| Height | 35 mm |
| Depth | 115 mm |
Operating Conditions | |
| Operating Temperature | 5...50 °C |
Standards and Certifications | |
| Certifications | CE, FCC, VCCI |
