Construction | |
| Construction Chassis | Metal Chassis with Aluminium Heatsink |
| Mounting Configuration | Built-in, Desktop, Wall, DIN-Rail mount |
| Protection Level of Chassis | IP40 |
| Type | Fanless |
CPU | |
| СPU Generation/Family | Skylake |
| Processor Installed | Intel Core i5-6300U |
| Max CPU frequency | 3 GHz |
Chipset | |
| Chipset | Intel Skylake SoC |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 1xSODIMM |
| Maximum Memory | 16 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 4 |
| USB v3.x | 4 |
Drive interfaces | |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 1 |
| Mini-PCIe/Mini Card | 1 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

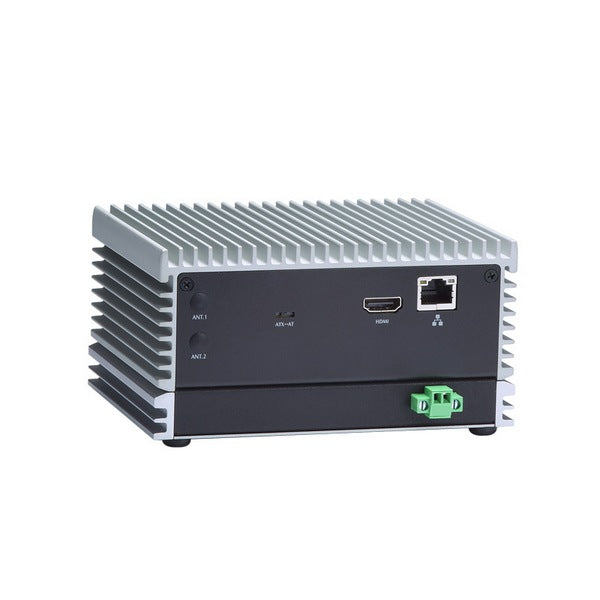

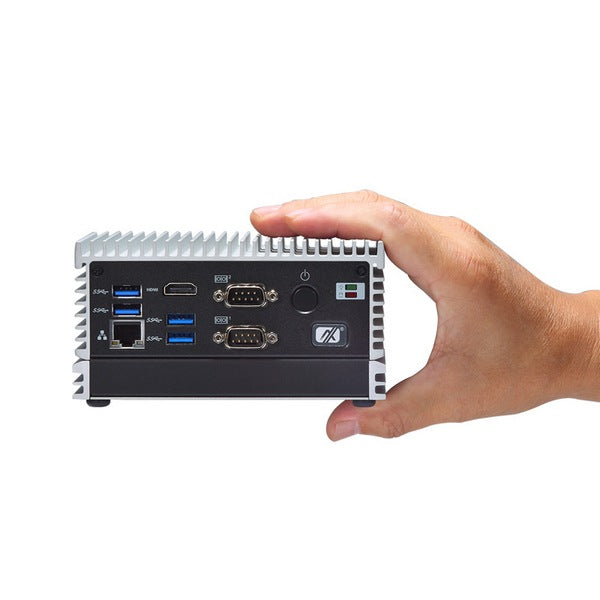

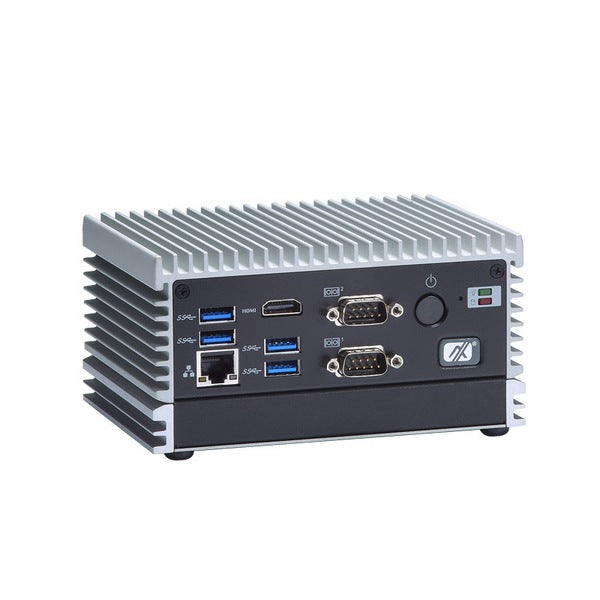

| Connectors | 2xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, DC Input |
System Power Input | |
| Input Voltage DC | 9...36 V |
Software | |
| Operating System Compatibility | Windows Embedded Standard 7, Windows Embedded Standard 8, Linux OS, Windows 10 |
Dimensions and weight | |
| Width | 141.6 mm |
| Height | 73 mm |
| Depth | 106 mm |
Operating Conditions | |
| Operating Temperature | -10...50 °C |
Standards and Certifications | |
| Certifications | CE |
