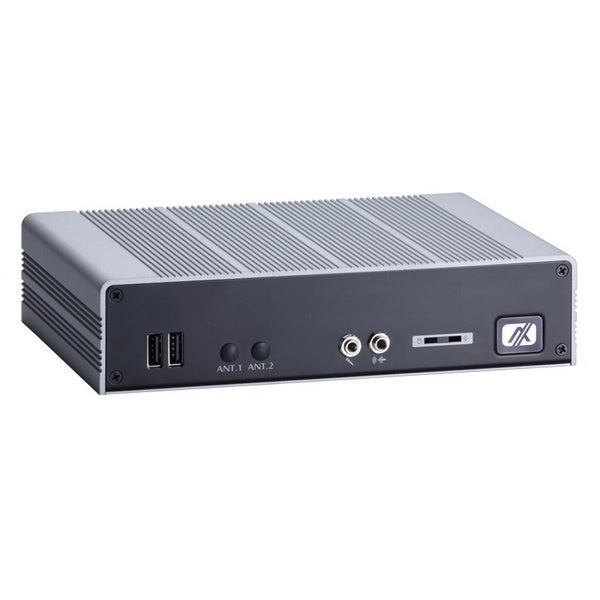

eBOX626-842-FL-J1900-DC

Ціна за запитом
Embedded Server with Intel Celeron J1900, DDR3L, HDMI, VGA, 2xGbE LAN, 3xCOM, 4xUSB, 2.5" SATA HDD Bay, mSATA, SIM Slot, 2x miniPCIe,10-34 Volts DC IN

Specification

Construction

Construction ChassisMetal Chassis with Aluminium Heatsink
Mounting ConfigurationBuilt-in, Wall
Protection Level of ChassisIP40
TypeFanless

CPU

СPU Generation/FamilyBay Trail
Processor InstalledIntel Celeron J1900
Max CPU frequency2.42 GHz

Chipset

ChipsetIntel Atom SoC

Memory

Form-factorDDR3L
Socket Type1xSODIMM
ECCNo
Maximum Memory8 GB
AssemblyRemovable

Graphic

Graphic ControllerIntegrated in CPU

Ethernet

Controller TypeIntel i211-AT 10/100/1000 Mbps
Total Ethernet2
10/100/1000 Mbit/s2

Interfaces

COM Total3
RS-2321
RS-232/422/4852
USB Total4
USB 2.04

Audio

Audio ControllerIntel HD Audio

Drive interfaces

mSATA1

Storage Cage

Number Of Cage External1
2.5" Cage Intenal1

Installed drive

1st Storage Capacity128 GB

Extension Slots

Mini-PCIe/Mini Card2
SIM Card slots1

Additional Functions

Watchdog timer typeSoftware

Connectors

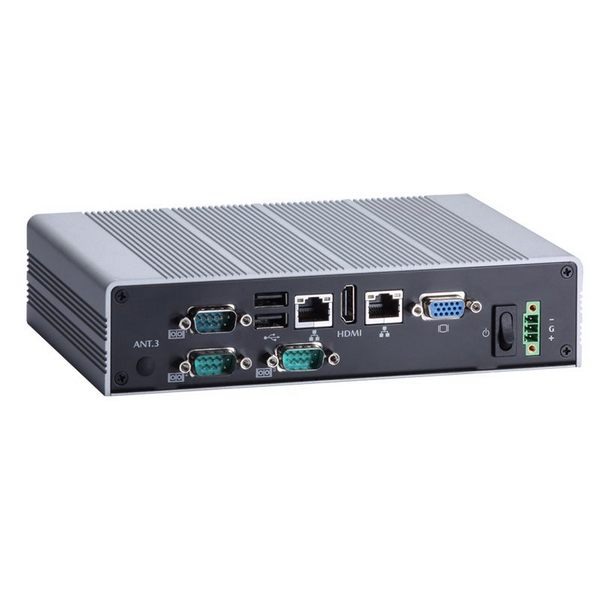

Connectors3xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input

System Power Input

Input Voltage DC10...34 V
Power Consumption42.5 W

Software

Operating System CompatibilityWindows Embedded Standard 7, Windows Embedded Standard 8

Dimensions and weight

Width200 mm
Height46 mm
Depth120 mm

Operating Conditions

Operating Temperature-20...60 °C
Vibration3 Grms

Standards and Certifications

CertificationsCE

Files

Documentation

📄 Datasheet eBOX626-842-FL
