Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Desktop, Wall, DIN-Rail mount |
| Protection Level of Chassis | IP40 |
| Type | Fanless |
CPU | |
| СPU Generation/Family | Tiger Lake |
| Processor Installed | Intel Core i7-1185G7E |
| Socket | FCBGA 1449 |
| CPU Support Type | Celeron, Core i3, Core i5, Core i7 |
| Max CPU frequency | 4.4 GHz |
Chipset | |
| Chipset | Intel SoC |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| ECC | No |
| Maximum Memory | 64 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
| Interfaces | DisplayPort, 2xHDMI |
Ethernet | |
| Controller Type | Intel i226-LM |
| Total Ethernet | 3 |
| 2,5 Gbit/s | 3 |
Interfaces | |
| COM Total | 4 |
| RS-232 | 2 |
| RS-232/422/485 | 2 |
| USB Total | 6 |
| USB 2.0 | 2 |
| USB v3.x | 4 |
Digital Input-Output | |
| Channels of DIO | 8 |
Audio | |
| Audio Controller | Intel HD Audio |
Drive interfaces | |
| SATA 3 | 2 |
| M.2 | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage External | 2 |
Extension Slots | |
| Total | 3 |
| M.2 | 2 |
| Mini-PCIe/Mini Card | 1 |
| SIM Card slots | 1 |
Antenna characteristics | |
| Cellular interfaces | 4G (Optional) |
LED / Controls | |
| LED | 1xHDD LED, Power LED |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

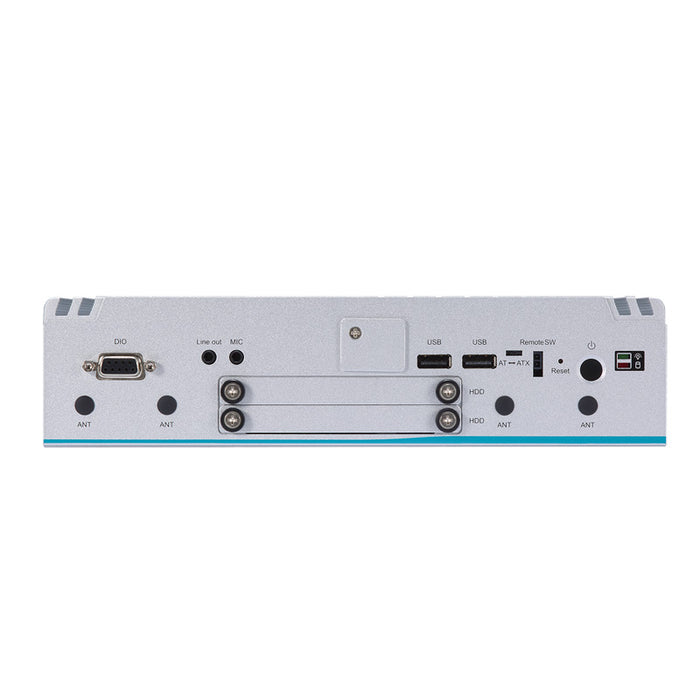

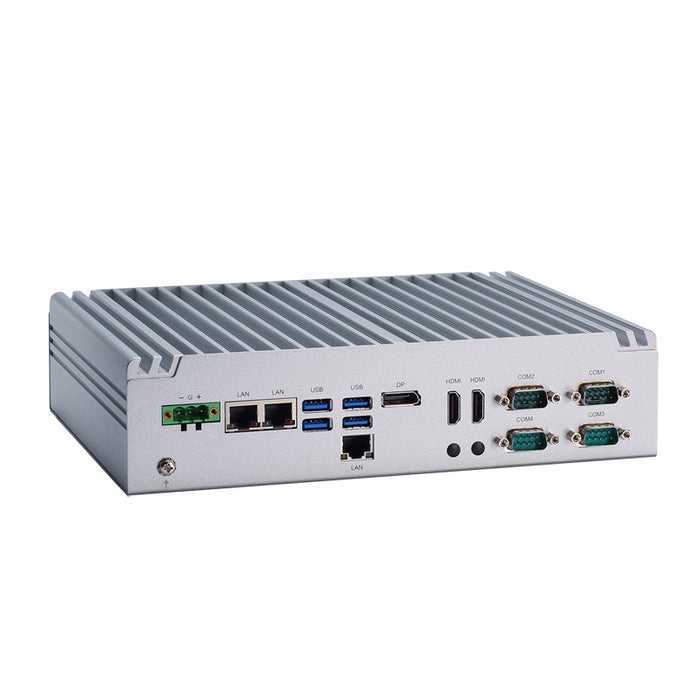

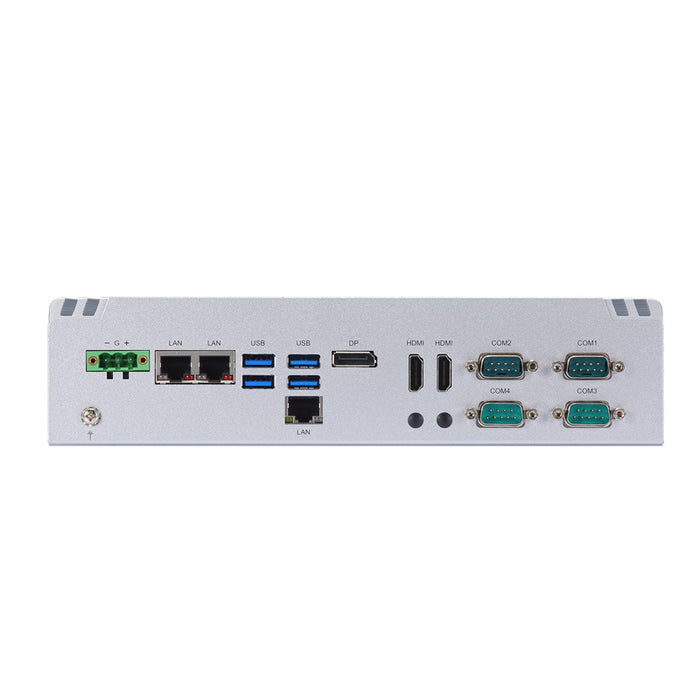

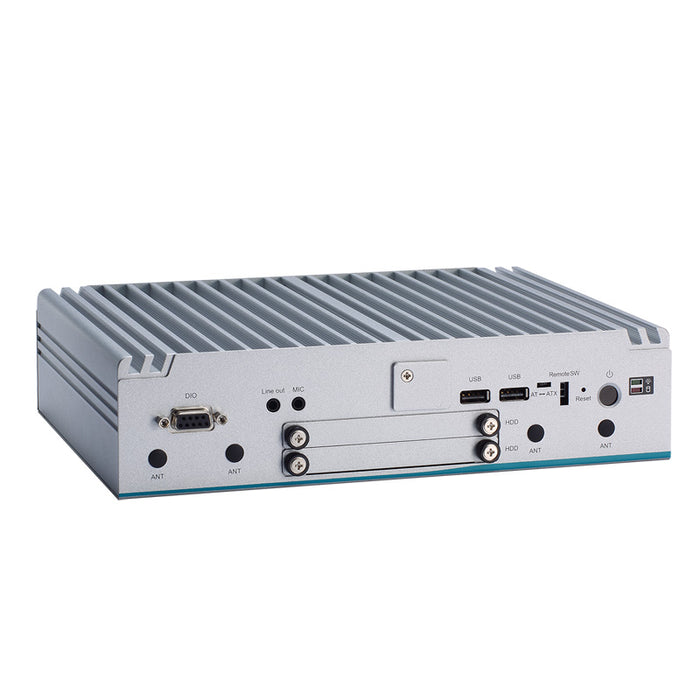

| Connectors | 4xDB9, 2xHDMI, 3xRJ45 Ethernet, 6xUSB, DC Input, 4xSMA, DB9 DIO, 2xJack 3.5 mm, Display Port |
System Power Input | |
| Input Voltage DC | 9...48 V |
| Power Consumption | 70 W |
Software | |
| Operating System Compatibility | Linux OS, Windows 10, Windows 11 |
Dimensions and weight | |
| Width | 250 mm |
| Height | 60 mm |
| Depth | 170 mm |
Operating Conditions | |
| Operating Temperature | -40...60 °C |
| Vibration | 3 Grms |
Standards and Certifications | |
| Certifications | CE/FCC |
