Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Built-in, Desktop, Wall |
| Protection Level of Chassis | IP40 |
CPU | |
| СPU Generation/Family | Skylake, Kaby Lake |
| Socket | LGA1151 |
| CPU Support Type | Celeron, Core i3, Core i5, Core i7 |
Chipset | |
| Chipset | Intel H110 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xDIMM |
| Maximum Memory | 32 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel i211-AT 10/100/1000 Mbps, Intel i219-LM |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 4 |
| RS-232 | 3 |
| RS-232/422/485 | 1 |
| USB Total | 6 |
| USB 2.0 | 2 |
| USB v3.x | 4 |
Audio | |
| Audio Controller | Realtek ALC662 |
Drive interfaces | |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 2 |
| 2.5" Cage Intenal | 2 |
Extension Slots | |
| Total | 1 |
| Mini-PCIe/Mini Card | 1 |
| SIM Card slots | 1 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

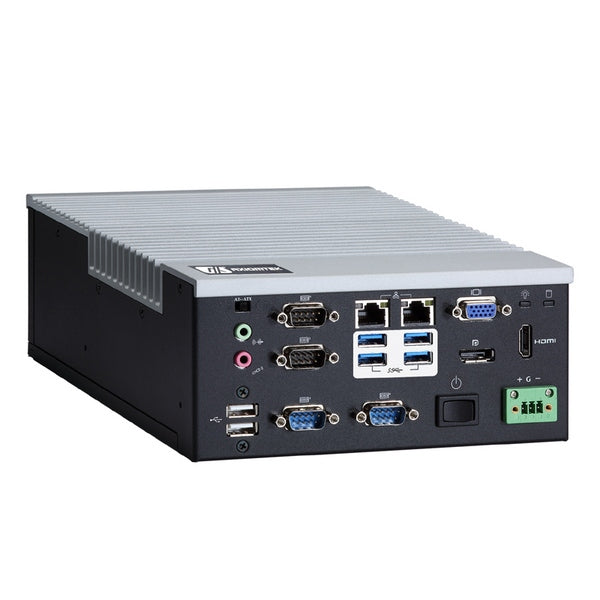

| Connectors | 4xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, DC Input, Display Port |
System Power Input | |
| Input Voltage DC | 10...30 V |
Software | |
| Operating System Compatibility | Windows Embedded Standard 8, Windows IoT Enterprise 10 |
Dimensions and weight | |
| Width | 182 mm |
| Height | 82 mm |
| Depth | 230 mm |
Operating Conditions | |
| Operating Temperature | -10...55 °C |
| Vibration | 2 Grms. 5-500 Hz |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
