Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Desktop, Wall |
CPU | |
| Processor Installed | Intel Core i5-6500TE, Intel Core i3-6100TE, Intel Core i7-6700TE |
| Socket | LGA1151 |
Chipset | |
| Chipset | Intel Q170 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| Maximum Memory | 32 GB |
Ethernet | |
| Controller Type | Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps |
| Total Ethernet | 1 |
| 10/100/1000 Mbit/s | 1 |
Interfaces | |
| COM Total | 4 |
| RS-232/422/485 | 4 |
| USB Total | 8 |
| USB v3.x | 8 |
Digital Input-Output | |
| Channels of DIO | 8 |
Drive interfaces | |
| CFast Slots | 1 |
Extension Slots | |
| Mini-PCIe/Mini Card | 2 |
Connectors | |

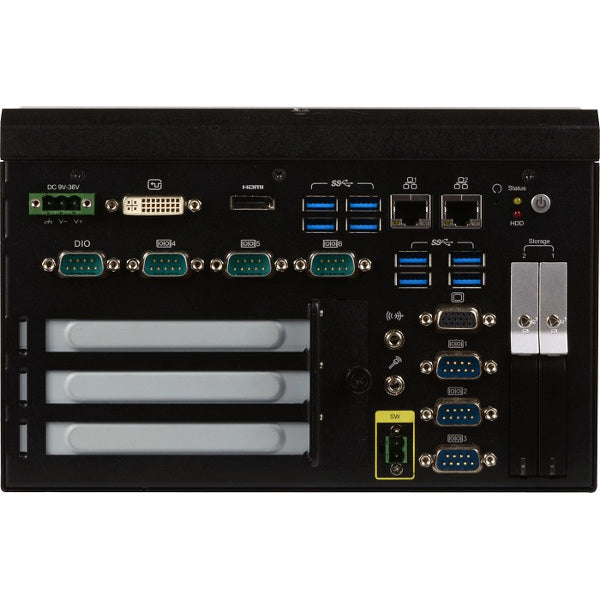

| Connectors | DVI, DVI-D, DB15 VGA, Mic In, Line Out, HDMI/DP |
System Power Input | |
| Input Voltage DC | 9...36 V |

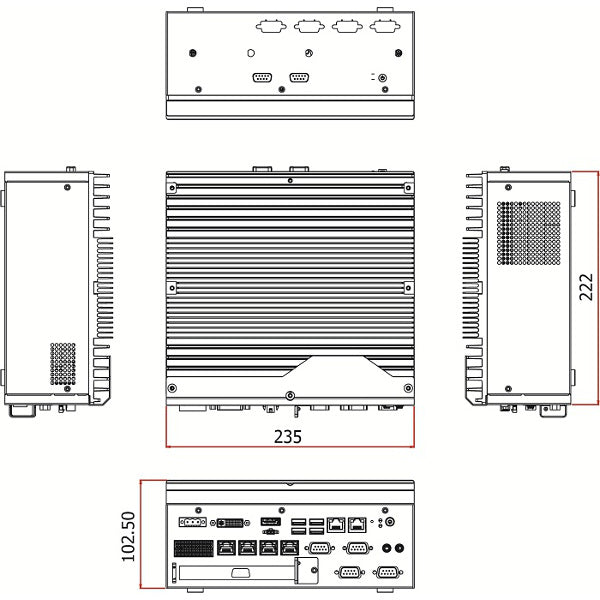

Dimensions and weight | |
| Width | 154 mm |
| Height | 235 mm |
| Depth | 222 mm |
Operating Conditions | |
| Operating Temperature | 0...45 °C |
