Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Desktop, Wall, DIN-Rail mount, Wall VESA 50 |
CPU | |
| CPU Support Type | Atom, Pentium |
Memory | |
| Form-factor | DDR4 |
| Default on Board Memory | 4 GB |
| Maximum Memory | 8 GB |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Wi-Fi | |
| Wi-Fi Standard | Yes |
Interfaces | |
| COM Total | 1 |
| RS-232/422/485 | 1 |
| USB Total | 4 |
| USB 2.0 | 2 |
| USB v3.x | 2 |
Extension Slots | |
| Total | 3 |
| M.2 | 2 |
| Mini-PCIe/Mini Card | 1 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |
| Connectors | DB15 VGA, 2xRJ45 Ethernet, 4xUSB, 2xMini DisplayPort |
System Power Input | |
| Input Voltage DC | 9...36 V |
Software | |
| Operating System Compatibility | Linux OS, Ubuntu, Windows IoT Enterprise 10 |

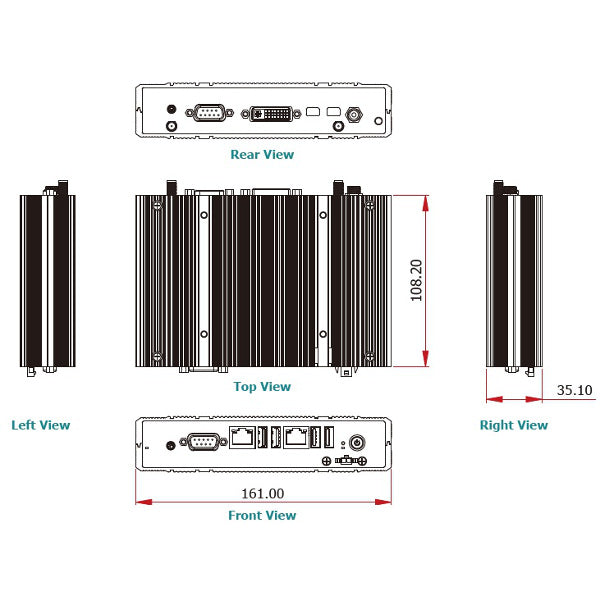

Dimensions and weight | |
| Width | 161 mm |
| Height | 35.1 mm |
| Depth | 108.2 mm |
Operating Conditions | |
| Operating Temperature | -20...60 °C |
