Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Desktop, Wall, DIN-Rail mount, Wall VESA 100 |
CPU | |
| Processor Installed | Intel Atom x7-E3950 |
| Max CPU frequency | 2 GHz |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| Maximum Memory | 8 GB |
Ethernet | |
| Controller Type | Intel i210-AT |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 1 |
| RS-232/422/485 | 1 |
| USB Total | 4 |
| USB 2.0 | 2 |
| USB v3.x | 2 |
Extension Slots | |
| M.2 | 2 |
| Mini-PCIe/Mini Card | 1 |
Connectors | |
| Connectors | DVI-D, DB15 VGA, 2xRJ45 Ethernet, Mic In, Mini HDMI |
System Power Input | |
| Input Voltage DC | 9...36 V |
Software | |
| Operating System Compatibility | Linux OS, Vxworks, Windows IoT Enterprise 10 |

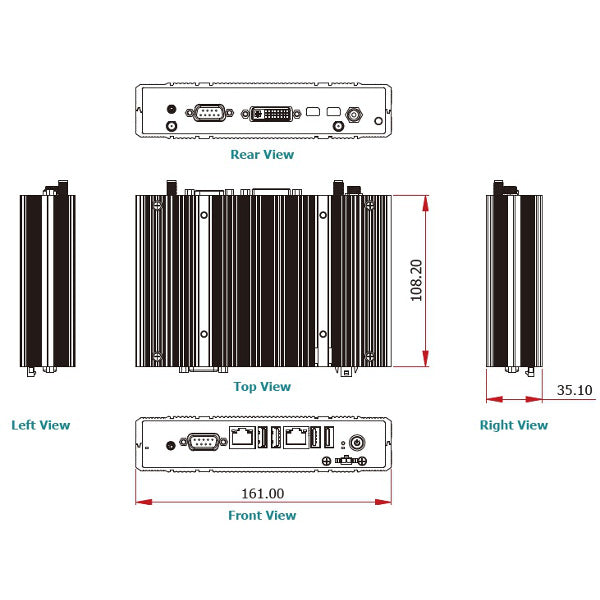

Dimensions and weight | |
| Width | 35 mm |
| Height | 161 mm |
| Depth | 108 mm |
Operating Conditions | |
| Operating Temperature | -20...60 °C |
| Vibration | Operating: Random 5~500Hz. IEC68-2-64 (3G) Non-Operating: Sine 10~500Hz. IEC68-2-6 (3G) |
| Shock | Operating: 3G. 11ms Non-Operating: 5G. 11ms |
