Construction | |
| Construction Chassis | Metal Chassis |

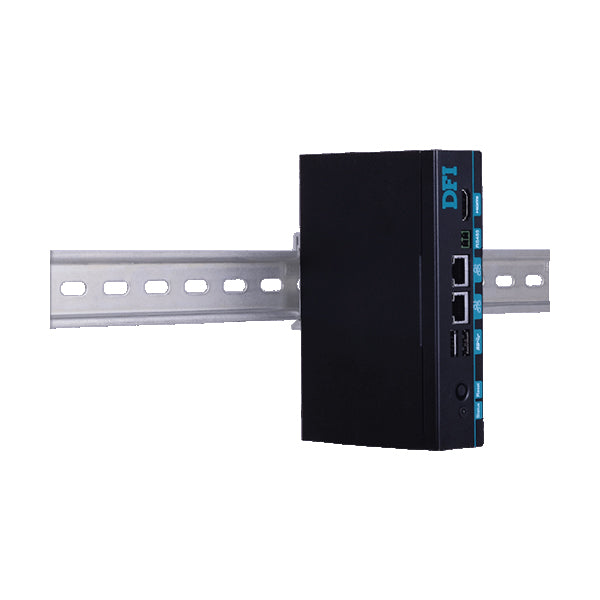

| Mounting Configuration | DIN-Rail mount |
CPU | |
| Processor Installed | ARM Cortex A9 |
| Max CPU frequency | 1 GHz |
Memory | |
| Form-factor | DDR3L |
| Default on Board Memory | 1 GB |
| Maximum Memory | 4 GB |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Wi-Fi | |
| Wi-Fi Standard | Yes |
Interfaces | |
| COM Total | 2 |
| RS-422 | 1 |
| RS-485 | 1 |
| USB Total | 3 |
| USB 2.0 | 2 |
Drive interfaces | |
| MicroSD | 1 |
Extension Slots | |
| Mini-PCIe/Mini Card | 1 |
Connectors | |
| Connectors | 2xDB9, HDMI, 2xRJ45 Ethernet, 3xUSB |
System Power Input | |
| Input Voltage DC | 9...36 V |
Software | |
| Operating System Compatibility | Android |
Dimensions and weight | |
| Width | 145 mm |
| Height | 34 mm |
| Depth | 96.4 mm |
Operating Conditions | |
| Operating Temperature | -20...60 °C |
