Construction | |
| Construction Chassis | Plastic Chassis |
| Mounting Configuration | DIN-Rail mount |
Analog Input | |
| Total channels of analog input | 3 |
| Number of Bits | 16 Bit |
| Voltage range | +/-10 V, +/-5 V, +/-2.5 V, +/-1.25 V, +/-625 mV, +/-100 mV, +/-50 mV, +/-312_mv, +/-200_mv, +/-_25_mv |
| Sampling rate | 1000 Hz |
| io_tenso_bridge_type | full |
Supported Protocols | |
| Industrial Protocols | EtherCAT slave |
Connectors | |

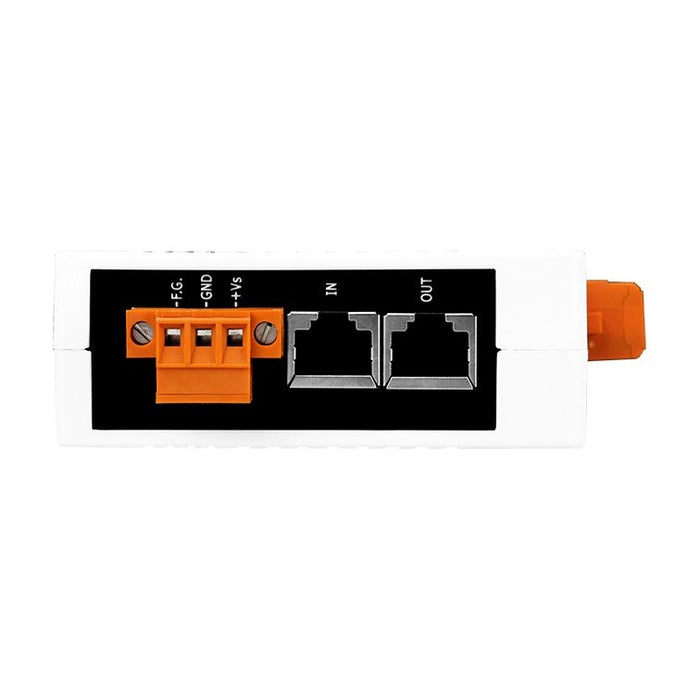

| Connectors | 2xRJ45, Screw Terminal |
System Power Input | |
| Input Voltage DC | 10...30 V |
Dimensions and weight | |
| Width | 90 mm |
| Depth | 33 mm |
| Height | 110 mm |
Operating Conditions | |
| Operating Temperature | -25...75 °C |
Standards and Certifications | |
| Certifications | CE/FCC |
| EMS | IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5 |
