ECAT-2016N

Name: ECAT-2016N
Brand: ICP DAS
SKU: 08703500
Availability: InStock

ICP DAS

Ціна за запитом

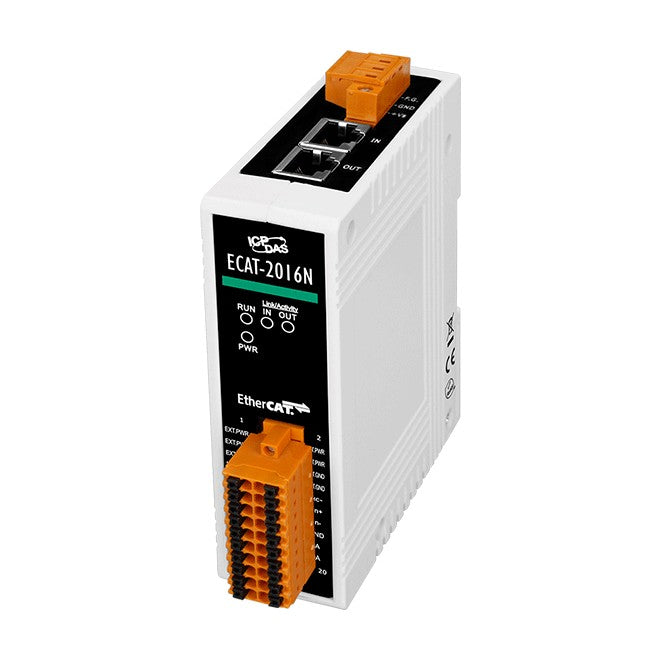

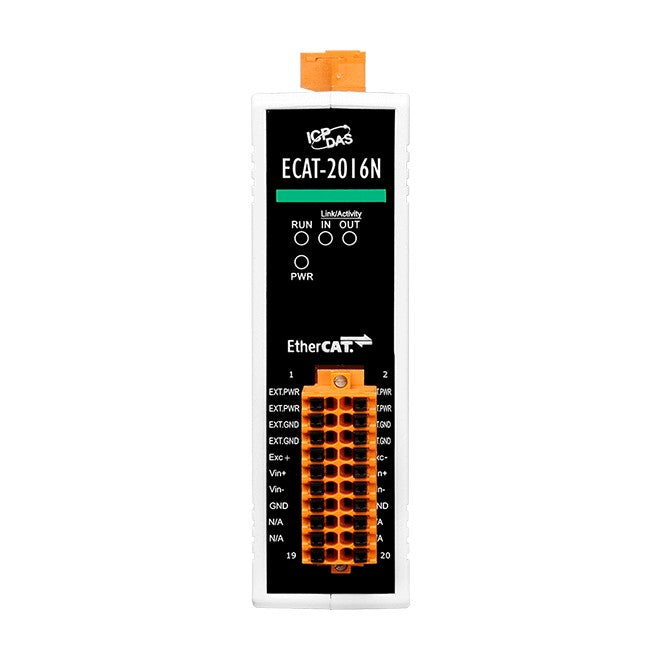

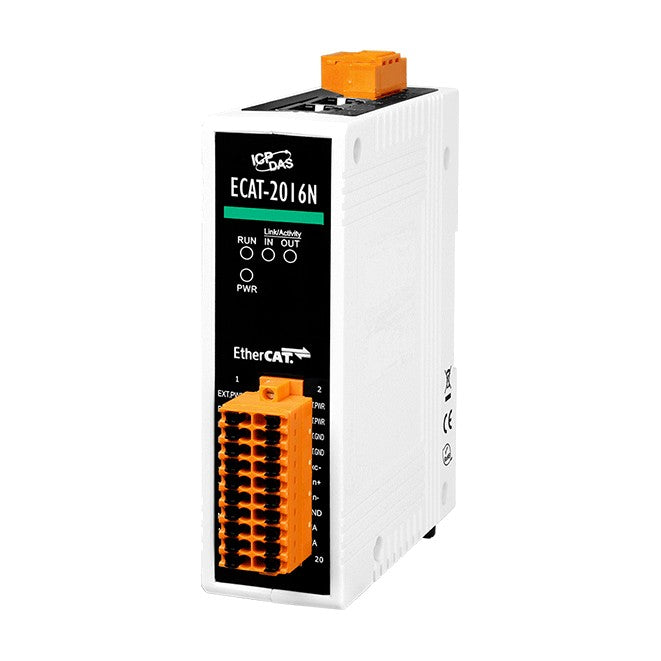

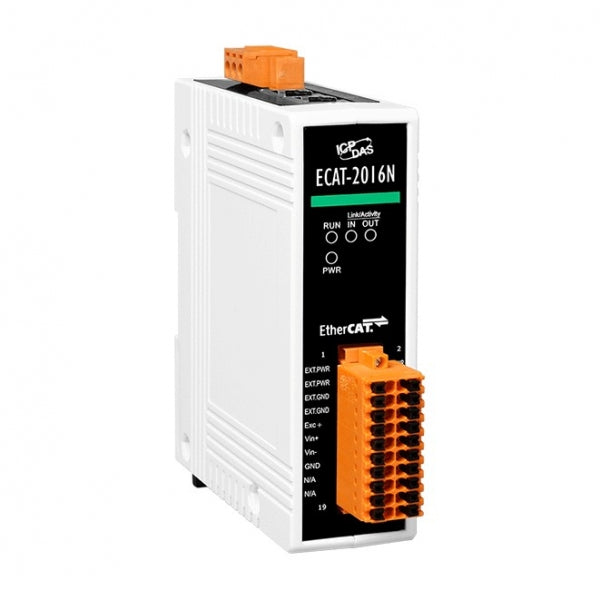

EtherCAT Slave I/O Module with 16-bit, 1 channel Strain Gauge (RoHS)

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	DIN-Rail mount
Analog Input
Total channels of analog input	1
Number of Bits	16 Bit
Voltage range	+/-10 mV, +/- 20 mV, +/-_30_mv
Sampling rate	1000 Hz
io_tenso_bridge_type	full
Supported Protocols
Industrial Protocols	EtherCAT slave
Connectors

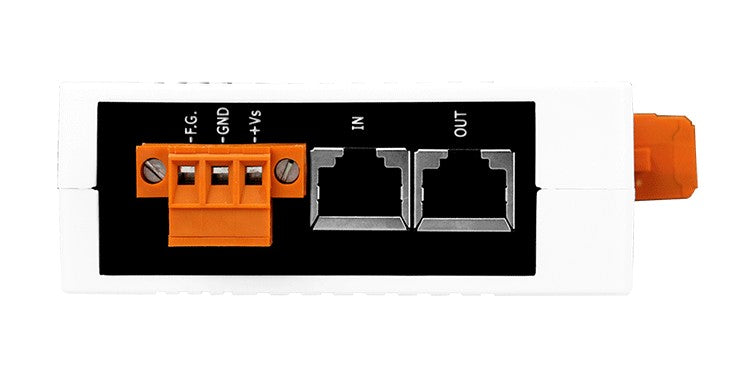

Connectors	2xRJ45, Screw Terminal
System Power Input
Input Voltage DC	10...30 V
Dimensions and weight
Width	90 mm
Depth	33 mm
Height	110 mm
Operating Conditions
Operating Temperature	-25...75 °C
Standards and Certifications
Certifications	CE/FCC
EMS	IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5

Документація
