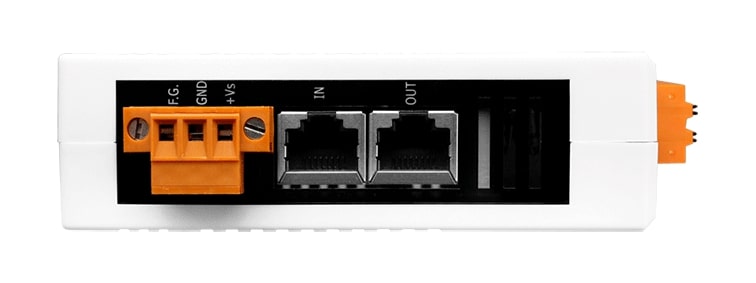

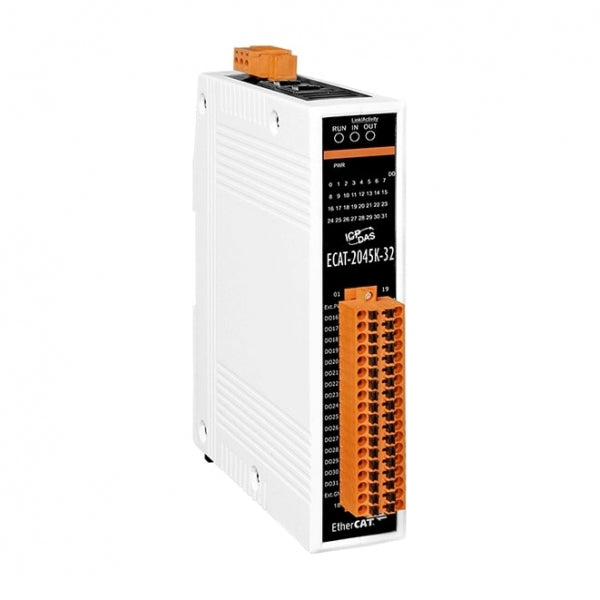

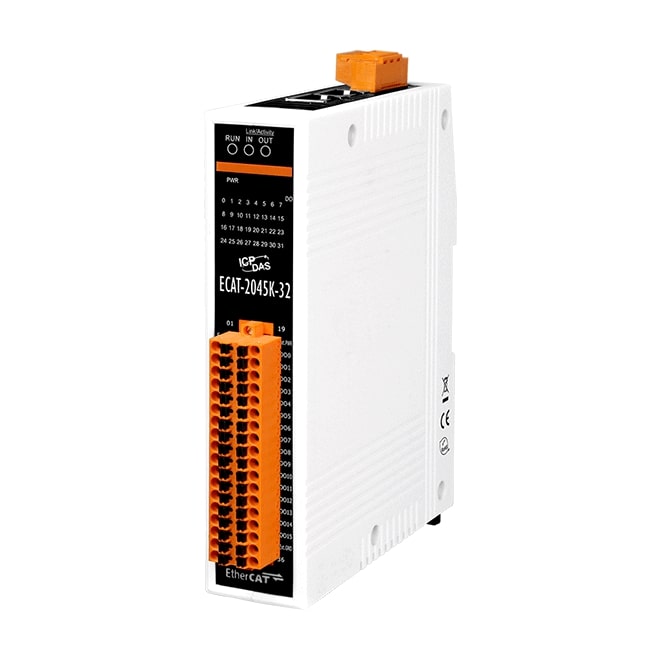

ECAT-2045K-32

Name: ECAT-2045K-32
Brand: ICP DAS
SKU: 09409500
Availability: InStock

ICP DAS

Ціна за запитом

EtherCAT Slave I/O Module with Isolated 32-ch DO 3.5-50VDC (Keep output value) (Sink, NPN) (RoHS), 10-30VDC-in

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	DIN-Rail mount
Ethernet
10/100 Mbit/s	2
Supported Protocols
Industrial Protocols	EtherCAT slave
Digital Output
Total channels of digital output	32
Type	Open collector
Sink/Source	Sink
Output voltage	3.5~50 V
Max. load current	500 mA
Connectors
Connectors	Screw Terminal
System Power Input
Input Voltage DC	10...30 V
Dimensions and weight
Width	31 mm
Depth	112 mm
Height	140 mm
Operating Conditions
Operating Temperature	-25...75 °C
Standards and Certifications
EMS	IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
