Construction | |
| Construction Chassis | Plastic Chassis |
| Mounting Configuration | DIN-Rail mount |

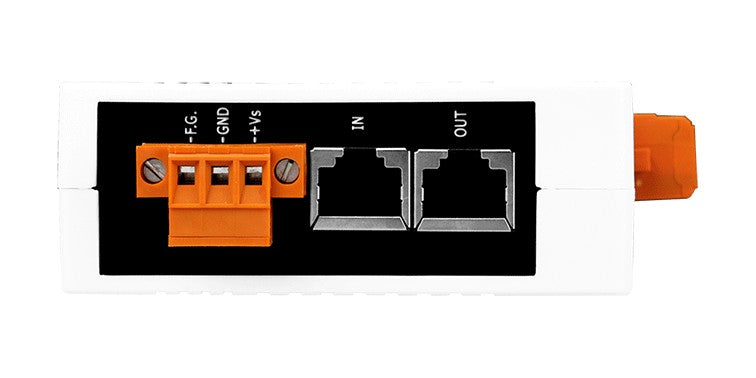

Ethernet | |
| 10/100 Mbit/s | 2 |
Supported Protocols | |
| Industrial Protocols | EtherCAT slave |
Digital Input | |
| Total channels of digital input | 16 |
| Type | Dry contact, Wet contact |
| Level of Logic "0" | 0~4 V |
| Level of Logic "1" | 10~50 V |
| Sink/Source | Dry: Source, Wet: Sink/Source |
| Isolation of Digital Input | 3750 V |
Connectors | |
| Connectors | Screw Terminal |
System Power Input | |
| Input Voltage DC | 10...30 V |
Dimensions and weight | |
| Width | 33 mm |
| Depth | 90 mm |
| Height | 110 mm |
Operating Conditions | |
| Operating Temperature | -25...75 °C |
Standards and Certifications | |
| EMS | IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5 |
