ECAT-2051-32

Name: ECAT-2051-32
Brand: ICP DAS
SKU: 07323100
Availability: InStock

ICP DAS

Ціна за запитом

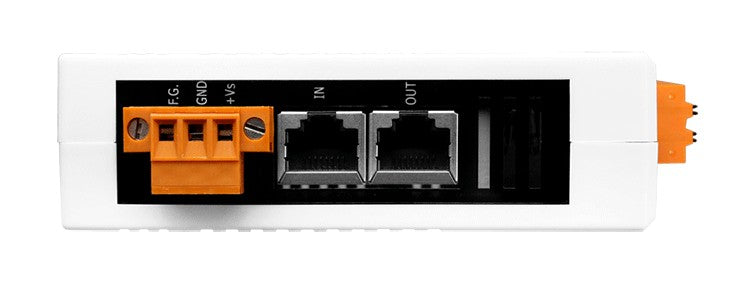

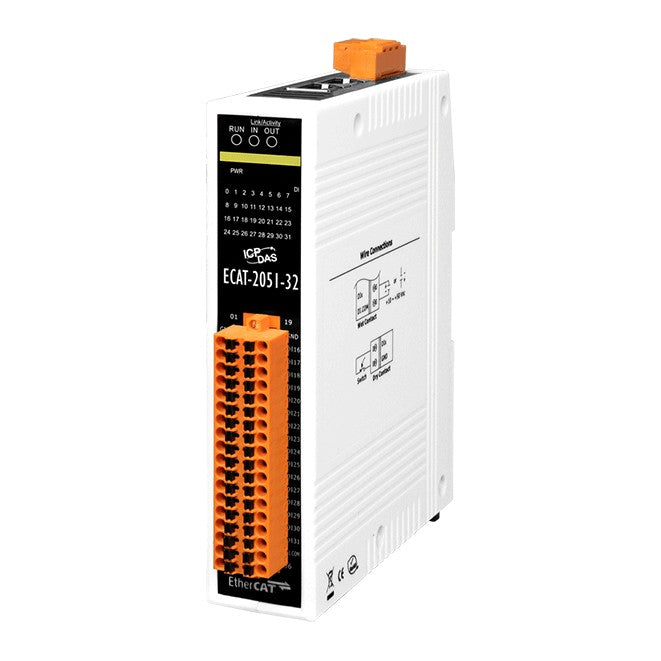

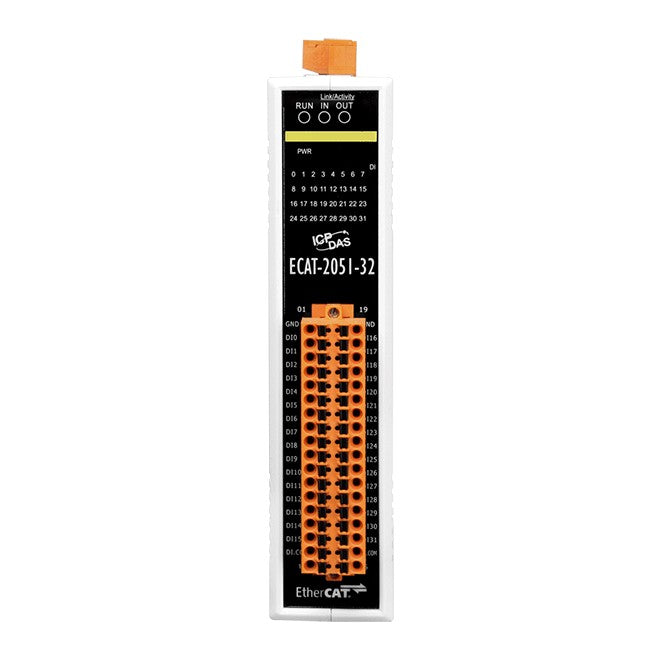

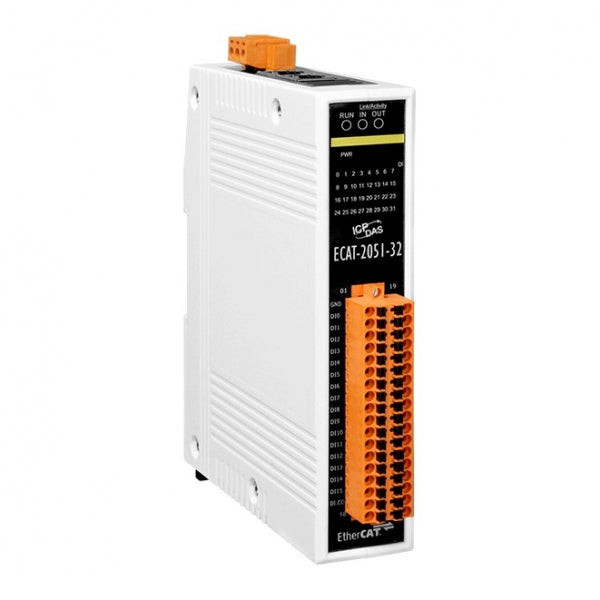

EtherCAT Slave I/O Module with Isolated 32-ch Digital Inputs (RoHS)

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	DIN-Rail mount
Digital Input
Total channels of digital input	32
Type	Dry contact, Wet contact
Level of Logic "0"	0~4 V
Level of Logic "1"	10~50 V
Sink/Source	Dry: Source, Wet: Sink/Source
Isolation of Digital Input	3750 V
Supported Protocols
Industrial Protocols	EtherCAT slave
Connectors
Connectors	Screw Terminal
System Power Input
Input Voltage DC	10...30 V
Dimensions and weight
Width	112.2 mm
Depth	31 mm
Height	140 mm
Operating Conditions
Operating Temperature	-25...75 °C
Standards and Certifications
EMS	IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
