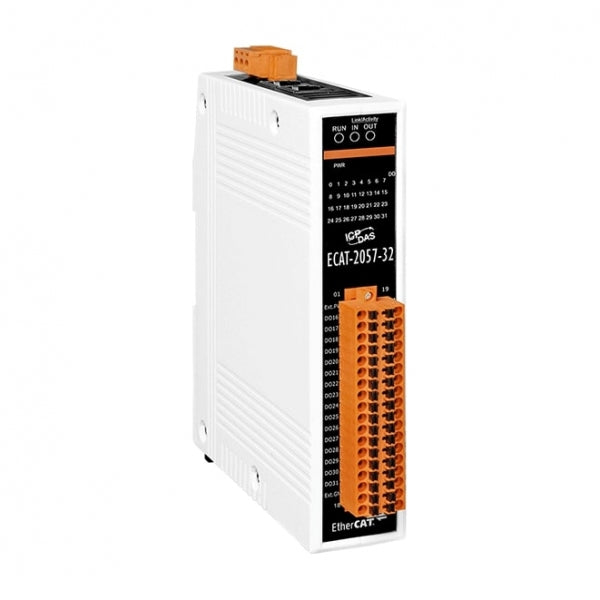

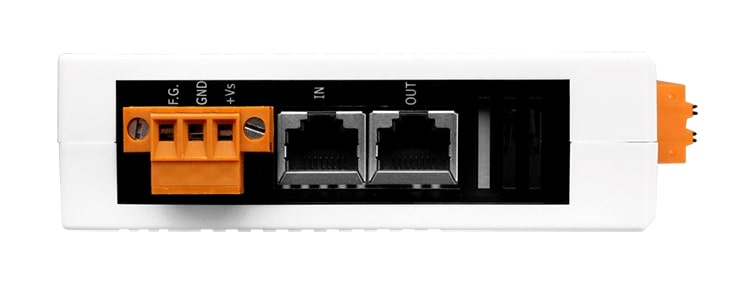

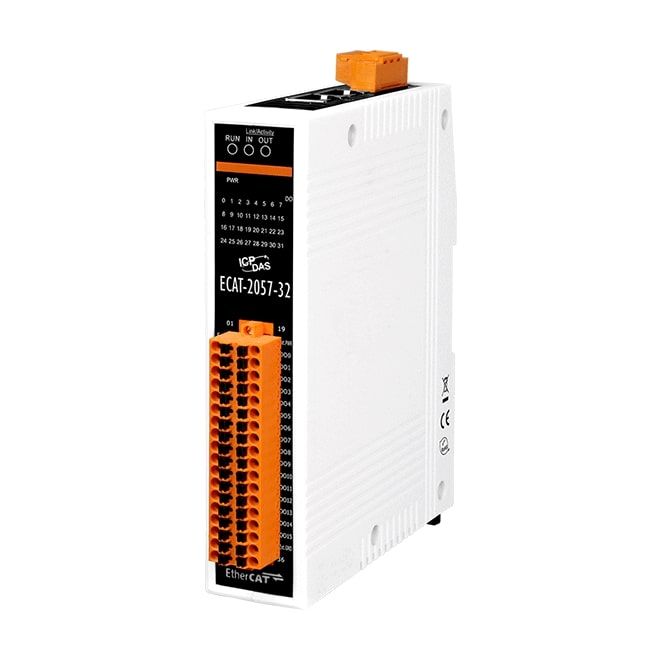

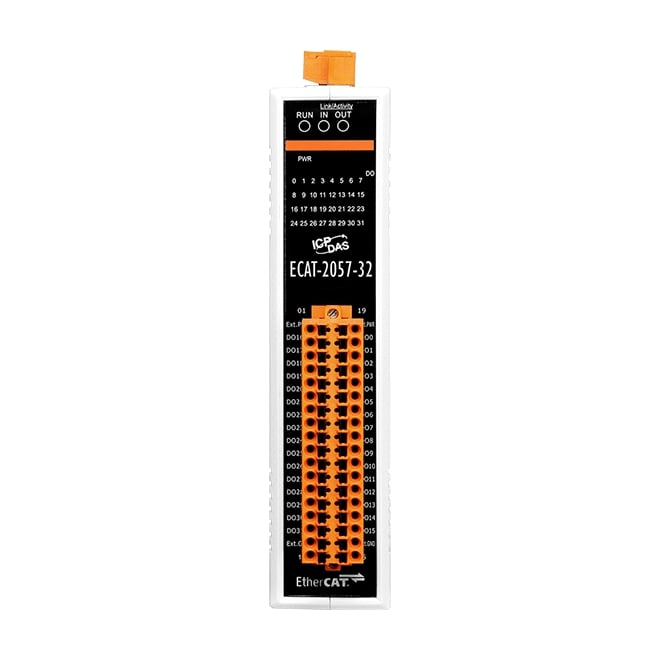

ECAT-2057-32

Name: ECAT-2057-32
Brand: ICP DAS
SKU: 09696300
Availability: InStock

ICP DAS

Ціна за запитом

EtherCAT Slave I/O Module with Isolated 32-ch Source-type 10-40VDC DO, 10-30VDC

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	DIN-Rail mount
Digital Output
Total channels of digital output	32
Type	Open emmiter
Sink/Source	Source
Output voltage	10~40 V
Max. load current	500 mA
Supported Protocols
Industrial Protocols	EtherCAT slave
Connectors
Connectors	Screw Terminal
System Power Input
Input Voltage DC	10...30 V
Dimensions and weight
Width	31 mm
Depth	157 mm
Height	126 mm
Operating Conditions
Operating Temperature	-25...75 °C
Standards and Certifications
EMS	IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5

Документація
