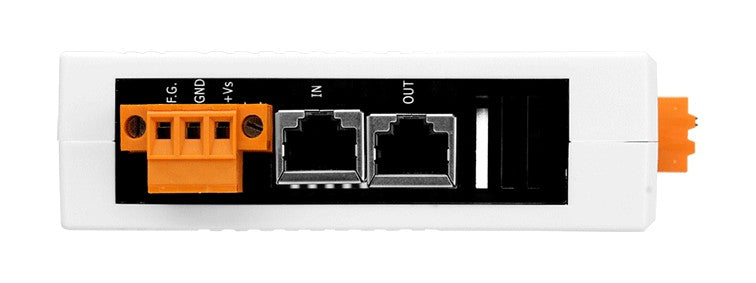

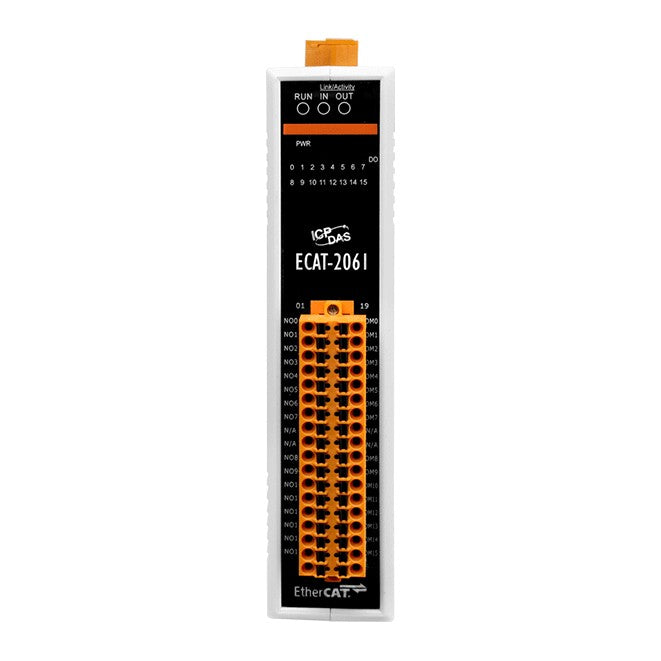

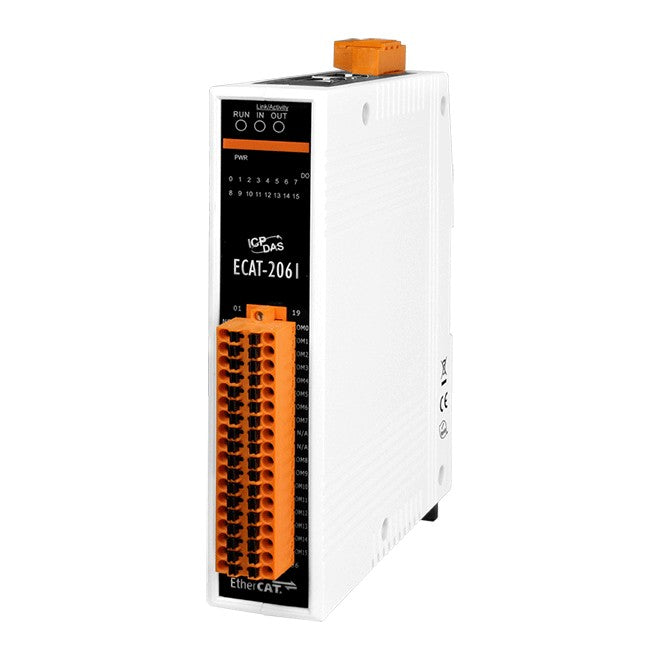

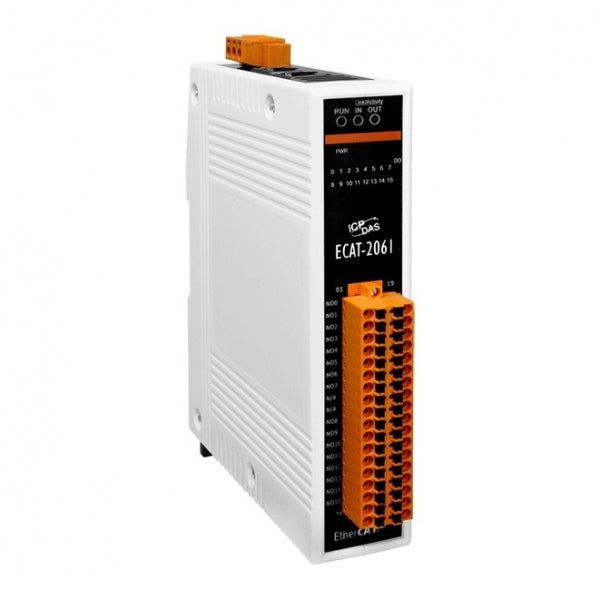

ECAT-2061

Name: ECAT-2061
Brand: ICP DAS
SKU: 07549000
Availability: InStock

ICP DAS

Ціна за запитом

EtherCAT Slave I/O Module with Isolated 16-ch Relay DO 30VDC/250VAC@3A (RoHS), 10-30VDC-in

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	DIN-Rail mount
Digital Output
Total channels of digital output	16
Type	Electromagnitic relay
Contact rating of relay (Form A)	3A@250V AC, 3A@30V DC
Supported Protocols
Industrial Protocols	EtherCAT slave
Connectors
Connectors	Screw Terminal
System Power Input
Input Voltage DC	10...30 V
Dimensions and weight
Width	33 mm
Depth	90 mm
Height	110 mm
Operating Conditions
Operating Temperature	-25...75 °C
Standards and Certifications
EMS	IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
