Construction | |
| Construction Chassis | Metal Chassis |

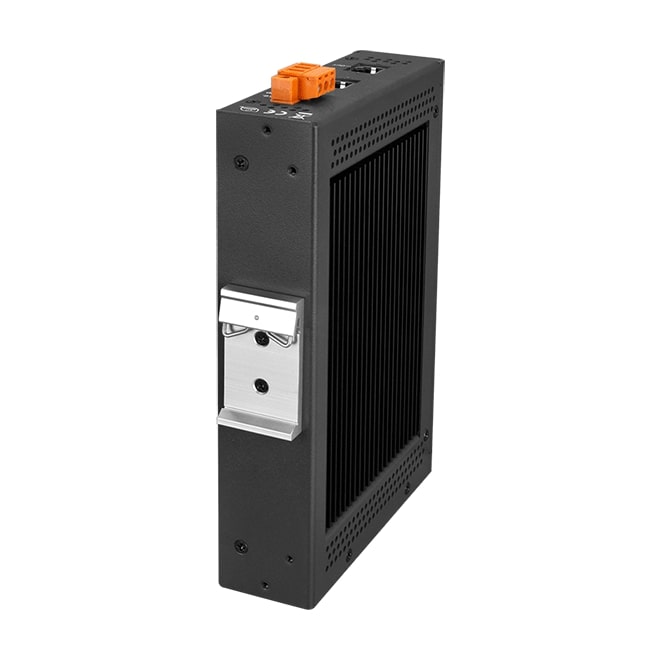

| Mounting Configuration | Wall, DIN-Rail mount |
Ethernet | |
| Total Ethernet | 2 |
| 10/100 Mbit/s | 2 |
Supported Protocols | |
| Industrial Protocols | EtherCAT slave |
Digital Input | |
| Total channels of digital input | 12 |
| Type | Wet contact |
| Level of Logic "0" | 0~4 V |
| Level of Logic "1" | 10~24 V |
| Isolation of Digital Input | 3750 V |
| Number of channels | 4 |
| Signal Type | A/B, CW/CCW, Pulse/Dir |
| Max frequency | 1 kHz |
Digital Output | |
| Channels | 4 |
| Output frequency range | 0~8.192 MHz |
| Output Voltage | 9 V |
Connectors | |

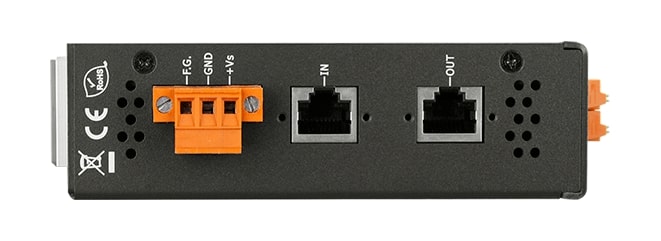

| Connectors | RJ45 Ethernet |
System Power Input | |
| Input Voltage DC | 20...30 V |
Dimensions and weight | |
| Width | 37 mm |
| Depth | 148 mm |
| Height | 229 mm |
Operating Conditions | |
| Operating Temperature | -25...40 °C |
Standards and Certifications | |
| EMS | IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5 |
