Construction | |
| Construction Chassis | Heavy-Duty Steel Chassis |
| Mounting Configuration | Wall, Wall VESA 100 |
| Type | Fanless |
CPU | |
| Processor Installed | Intel Atom D2550 |
| Socket | CPU onboard |
| Max CPU frequency | 1.86 GHz |
Chipset | |
| Chipset | Intel NM10 |
Memory | |
| Form-factor | DDR3 |
| ECC | No |
| Default on Board Memory | 2 GB |
| Maximum Memory | 4 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Realtek 8111E |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Wi-Fi | |
| Wi-Fi Standard | 802.11b/g/n |
Interfaces | |
| COM Total | 4 |
| RS-232 | 3 |
| RS-422/485 | 1 |
| USB Total | 6 |
| USB 2.0 | 6 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 1 |
| Mini-PCIe/Mini Card | 1 |
Connectors | |

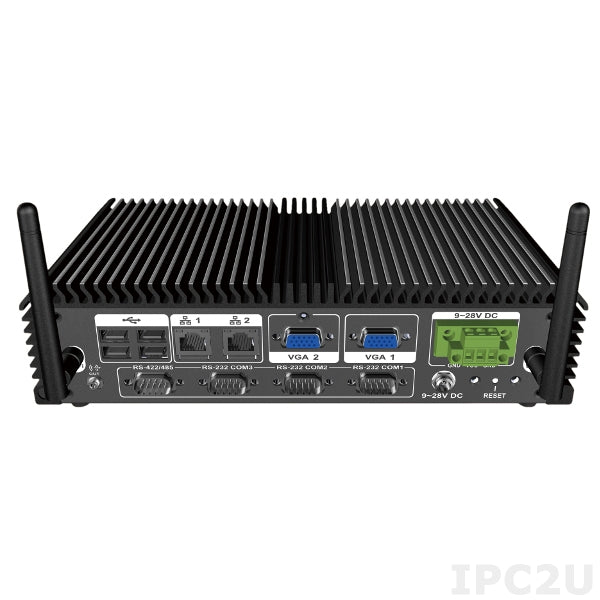

| Connectors | 4xDB9, 2xDB15 VGA, 2xRJ45 Ethernet, 6xUSB, Line Out, DC Input, DC input (terminal block) |
System Power Input | |
| Input Voltage DC | 9...28 V |
| Power Consumption | 19.08 W |
Dimensions and weight | |
| Width | 255 mm |
| Height | 63 mm |
| Depth | 130 mm |
Operating Conditions | |
| Shock | Half-sine wave shock 3G. 11ms. 3 shocks per axis |
Standards and Certifications | |
| MIL-STD-810 | MIL-STD-810F Test Method 514.5C-2 Vibration |
