Construction | |

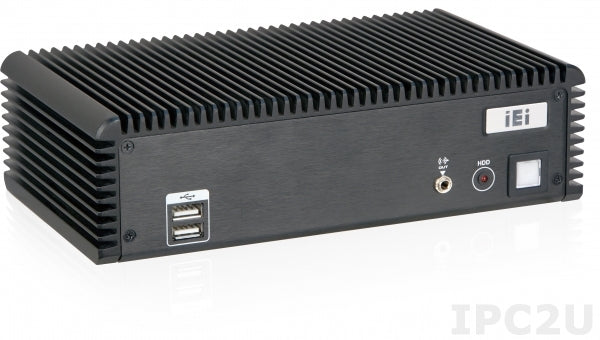

| Construction Chassis | Metal Chassis with Aluminium Heatsink |
| Mounting Configuration | Wall, Wall VESA 100 |
| Type | Fanless |
CPU | |
| Processor Installed | Intel Celeron J1900 |
| Max CPU frequency | 2.42 GHz |
Chipset | |
| Chipset | Intel Atom SoC |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| Maximum Memory | 8 GB |
| Assembly | Removable |
Ethernet | |
| Controller Type | Intel i211, Intel i210 10/100/1000 Mbps |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Wi-Fi | |
| Wi-Fi Standard | 802.11b/g/n |
Interfaces | |
| COM Total | 4 |
| RS-232 | 3 |
| RS-422/485 | 1 |
| USB Total | 4 |
| USB 2.0 | 3 |
| USB v3.x | 1 |
Drive interfaces | |
| mSATA | 1 |
Storage Cage | |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 2 |
| Mini-PCIe/Mini Card | 2 |
Connectors | |

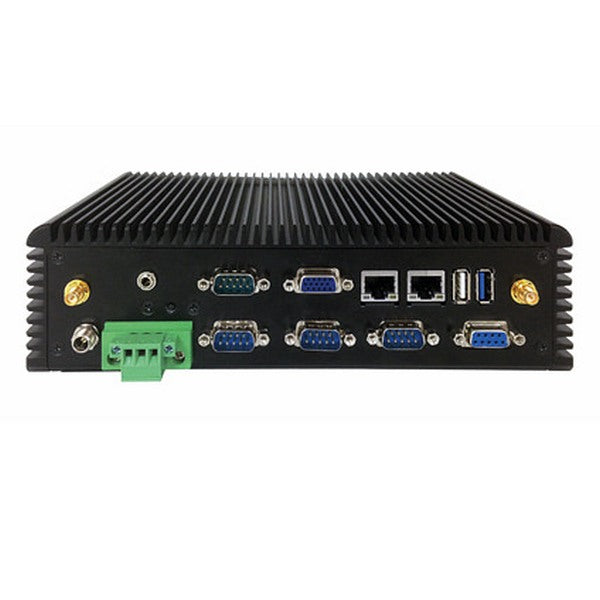

| Connectors | 4xDB9, DB15 VGA, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input, DC input (terminal block), DB9 GPIO, SMA Female |
System Power Input | |
| Input Voltage DC | 9...36 V |
Dimensions and weight | |
| Width | 229 mm |
| Height | 64 mm |
| Depth | 132 mm |
Operating Conditions | |
| Operating Temperature | -20...60 °C |
| Vibration | MIL-STD-810F 514.5C-1 (HDD) |
| Shock | Half sine wave 5G. 11ms 3-axis (non-operational) |
Standards and Certifications | |
| MIL-STD-810 | MIL-STD-810F Test Method 514.5C-1 Vibration |
