Ціна за запитом

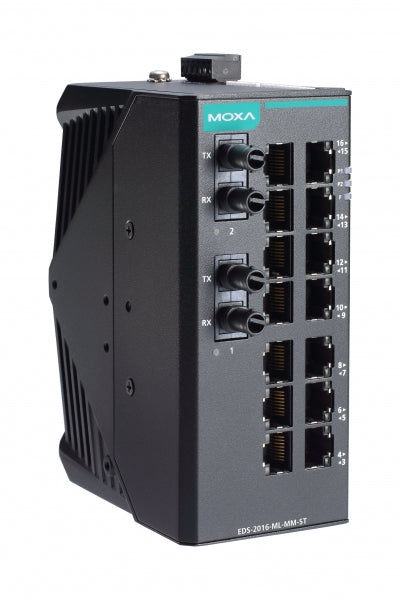

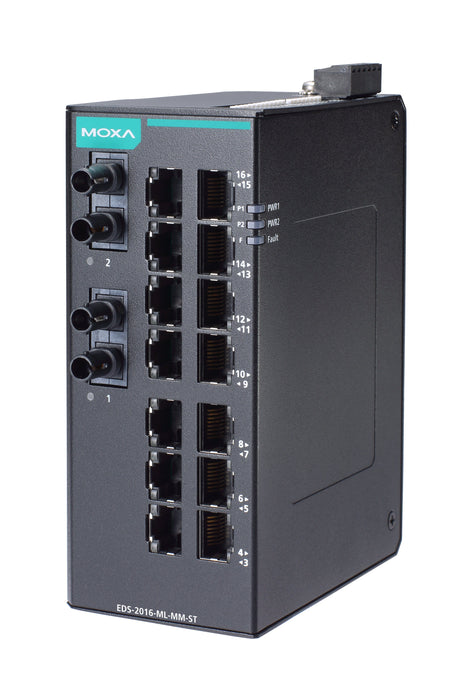

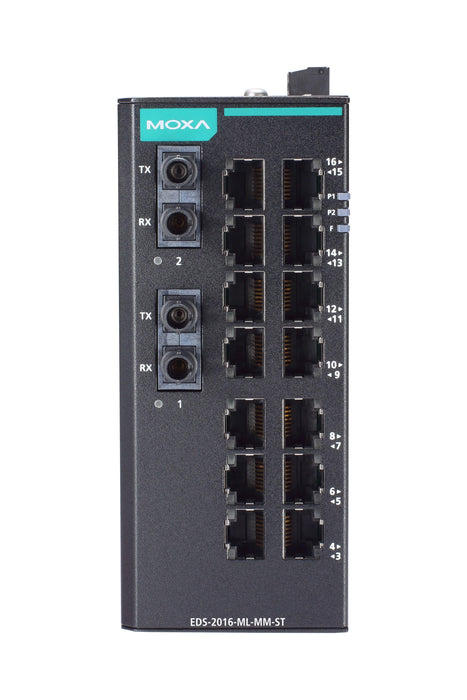

Unmanaged Ethernet switch with 14 10/100BaseT(X) ports, 2 100BaseFX multi-mode ports with ST connectors, -10 to 60C operating temperature



Total Ethernet16
10/100 Mbit/s16
Type 10/100 Mbit/s2xST, 14xRJ-45


Number of Optical Ports2xST
Type of Fibre Opticmulti-mode

Switch Properties

Switch LevelLayer 2
Supported technologiesQoS
Supported functionsBroadcast Storm Protection, Automatic power failure notification, Automatic port failure notification
MAC Table Size8000
Packet Buffer Size2 kBit

Supported Protocols

IEEE StandardIEEE 802.1P for Class of Service, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control

Digital Output

Total channels of digital output1
TypeSignal Relay
Contact rating of relay (Form A)1A@24V DC

LED / Controls

Setup of Operation ModeBy Switches

System Power Input

Redundant power inputYes
Input Voltage DC9.6...60 V
Power Supply Reserve input Voltage DC9.6...60 V


Construction ChassisMetal Chassis
Mounting ConfigurationWall, DIN-Rail mount
Protection Level of ChassisIP30

Dimensions and weight

Width58 mm
Depth95 mm
Height135 mm

Operating Conditions

Operating Temperature-10...60 °C

Standards and Certifications

EMIFCC Part 15 Subpart B Class A, CISPR 32
EMSIEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55032, EN 55035
Rolling StockEN 50121-4
SafetyUL 61010-2-201, EN 62368
FreefallIEC 60068-2-32
Vibration And ShockIEC 60068-2-6, IEC 60068-2-27
