Ціна за запитом

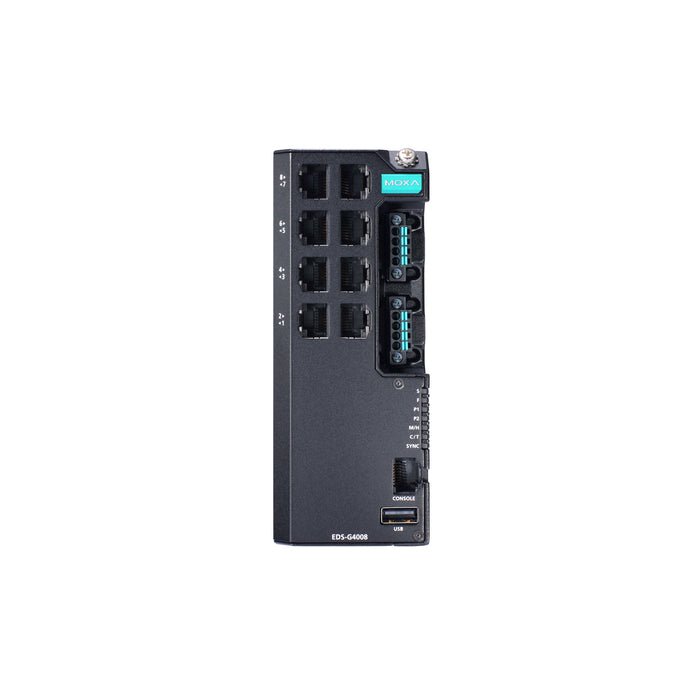

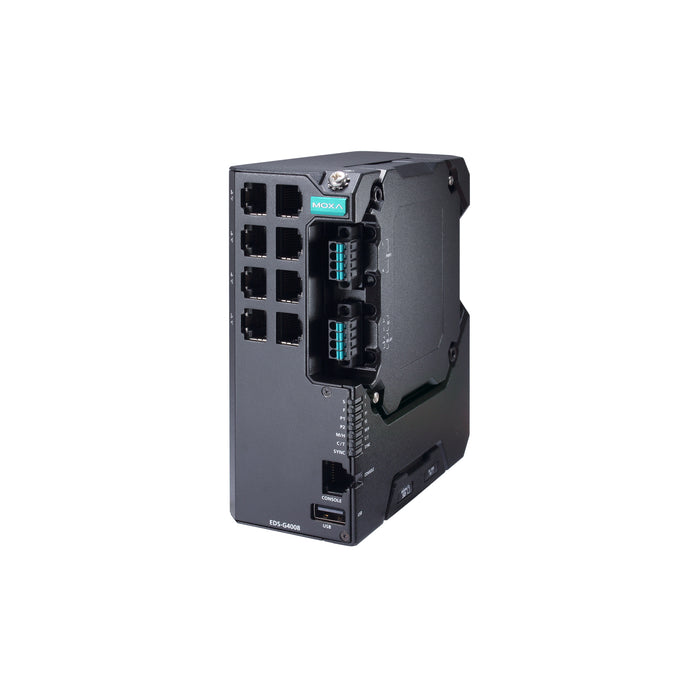

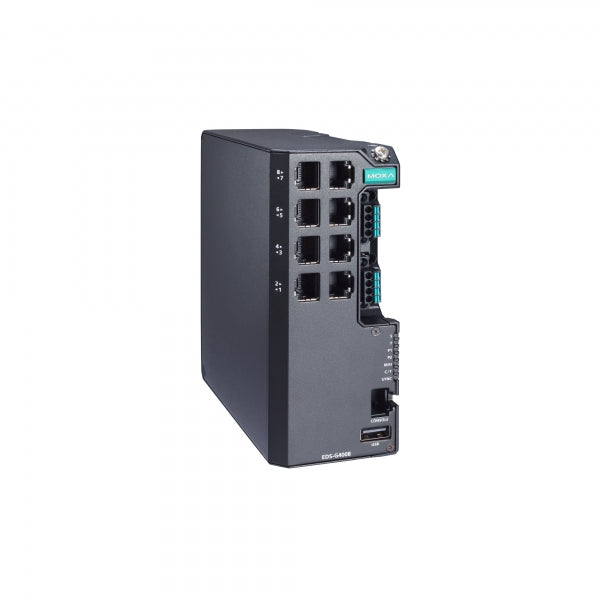

Managed Full Gigabit Ethernet switch with 8 10/100/1000BaseT(X) ports, dual power supply 12/24/48 VDC, -40 to 75C operating temperature



Total Ethernet8
10/100/1000 Mbit/s8
Type 10/100/1000 Mbit/s8xRJ-45

Switch Properties

Switch LevelLayer 2
Supported functionsPort Mirror, MAC sticky, Port Lock, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Port-Based VLAN, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, NTP Authentication, Security features based on IEC 62443, Trusted Access Control, Ring Operation, Supports network management system
MAC Table Size16000
Packet Buffer Size1 kBit
Jumbo Frame Size9.22 kB
Max. Number of VLANs256
Priority Queues4
IGMP Groups512

Supported Protocols

Managment ProtocolsDHCP Server/Client, DHCP Option 66/67/82, SNTP, SMTP, SNMP Inform, SNMPv1/v2c/v3, GMRP, GVRP, HTTP, LLDP, RARP, RMON, Syslog, Telnet, TFTP, QoS, UDP, DNS, NTP, ARP, VLAN, TCP/IP, Private MIB, NTP Client, GARP, IGMP Snooping v1/v2/v3, IGMP Querier, Linkup Delay, SNMP Trap, SFTP
Reservation protocolsSTP, RSTP, Turbo Ring, Turbo Chain
IEEE StandardIEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)

Digital Input

Total channels of digital input1
TypeWet contact
Level of Logic "0"-30~3 V
Level of Logic "1"13~30 V

Digital Output

Total channels of digital output1
TypeSignal Relay
Contact rating of relay (Form A)1A@24V DC

Expansion Module

Supported ModulePWR-100–LV, PWR-105-HV-I

LED / Controls

Setup of Operation ModeTelnet, Console Port, By Switches, Web-interface, Command Line Interface (CLI), ABC-configurator


ConnectorsConsole Port RS-232 (RJ-45)

System Power Input

Redundant power inputYes
Input Voltage DC9.6...60 V
Power Supply Reserve input Voltage DC9.6...60 V


Construction ChassisMetal Chassis
Mounting ConfigurationWall, DIN-Rail mount
Protection Level of ChassisIP40

Dimensions and weight

Width55 mm
Depth120 mm
Height140 mm

Operating Conditions

Operating Temperature-40...75 °C

Standards and Certifications

EMIEN 55022, EN 55024, FCC Part 15 Subpart B Class A, CISPR 32
EMSIEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4
Rolling StockEN 50121-4
AutomotiveNEMA TS2
SafetyUL 61010-2-201, EN 62368-1 (LVD), IEC 62443-4-1, IEC 62443-4-2
FreefallIEC 60068-2-32
Vibration And ShockIEC 60068-2-6, IEC 60068-2-27
