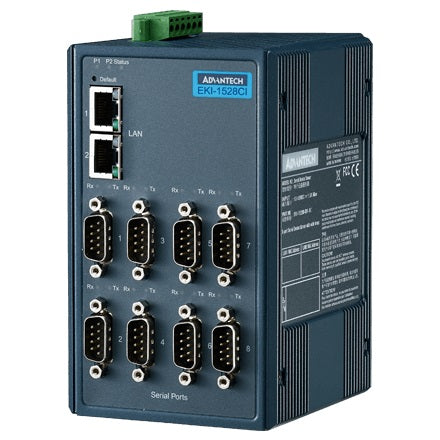

EKI-1528CI-DR-AE

Name: EKI-1528CI-DR-AE
Brand: Advantech
SKU: 07707600
Availability: InStock

Advantech

Ціна за запитом

8 port Ethernet to RS-232/422/485 Data Gateway, wide temp, isolation

Специфікація

Specification

Ethernet
Total Ethernet	2
10/100 Mbit/s	2
Type 10/100 Mbit/s	2xRJ-45
Interfaces
COM Total	8
RS-422/485	8
LED / Controls
LED	Power LED, 10/100M LED, TX LED, RX LED
System Power Input
Input Voltage DC	12...48 V
Power Supply Reserve input Voltage DC	12...48 V
Operating Conditions
Operating Temperature	-40...70 °C
Construction
Construction Chassis	Metal Chassis
Mounting Configuration	Wall, DIN-Rail mount
Protection Level of Chassis	IP30
Dimensions and weight
Width	86 mm
Depth	95 mm
Height	140 mm
Standards and Certifications
Certifications	CE
EMI	FCC Part 15 Subpart B Class A
