Ціна за запитом

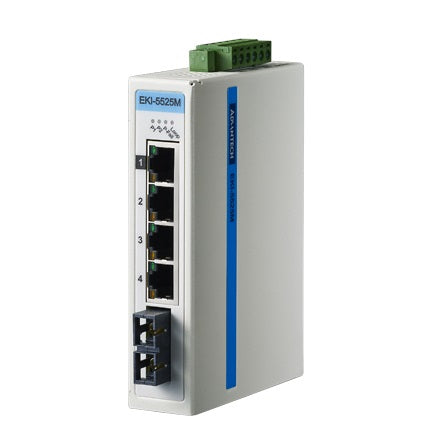

4FE+1FE SC Single-mode Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, -40...+75C



Total Ethernet5
10/100 Mbit/s5
Type 10/100 Mbit/s1xSC, 4xRJ-45


Number of Optical Ports1xSC
Type of Fibre Opticsingle-mode

Switch Properties

Switch LevelLayer 2

Supported Protocols

Industrial ProtocolsModbus TCP
Managment ProtocolsQoS, SNMP
IEEE StandardIEEE 802.1P for Class of Service, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3az for Energy-Efficient Ethernet

Digital Output

Total channels of digital output1
TypeSignal Relay

System Power Input

Redundant power inputYes
Input Voltage DC12...48 V
Power Supply Reserve input Voltage DC12...48 V


Construction ChassisMetal Chassis
Mounting ConfigurationWall, DIN-Rail mount
Protection Level of ChassisIP30

Dimensions and weight

Width27 mm
Depth84 mm
Height120 mm

Operating Conditions

Operating Temperature-40...75 °C

Standards and Certifications

EMIEN 55022, EN 55022 Class A, FCC Part 15 Subpart B Class A
EMSEN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 55011
Oil And GasATEX Zone 2 Ex nC IIC, UL/cUL Class I Division 2 Groups A/B/C/D
SafetyEN 60950, UL 60950-1, UL 508
FreefallIEC 60068-2-32
Vibration And ShockIEC 60068-2-6, IEC 60068-2-27
