Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Desktop, Wall |
| Type | Fanless |
CPU | |
| СPU Generation/Family | Coffee Lake, Coffee Lake Refresh |
| Socket | LGA1151 |
| CPU Support Type | Core i3, Core i5, Core i7, Core i9 |
Chipset | |
| Chipset | Intel Q370 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| ECC | No |
| Maximum Memory | 32 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel i219-LM, Intel i210-IT |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 3 |
| RS-232/485 | 3 |
| USB Total | 4 |
| USB v3.x | 4 |
Drive interfaces | |
| M.2 | 1 |
Extension Slots | |
| Total | 3 |
| M.2 | 3 |
| M.2 Form Factor | 2280 M, 2230 E, 2242 M |
| SIM Card slots | Yes, 1 |
Antenna characteristics | |
| Cellular interfaces | 4G (Optional) |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

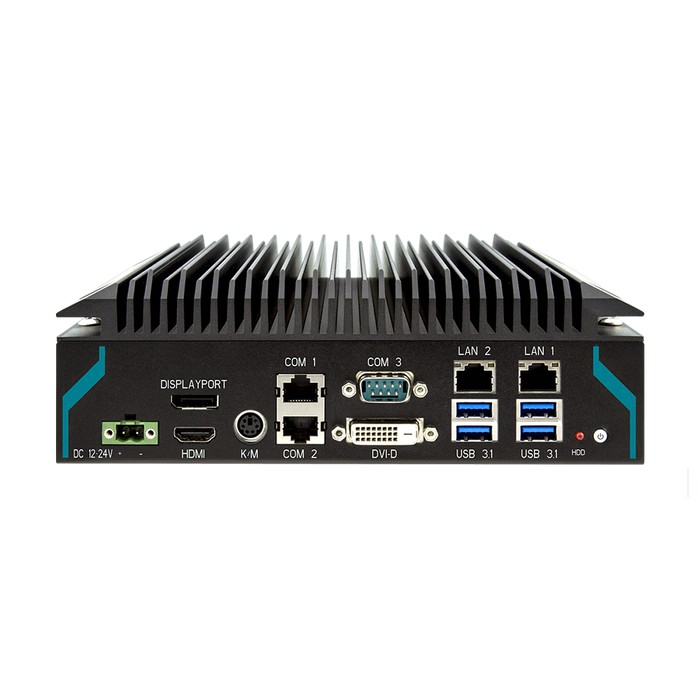

| Connectors | DB9, DVI-D, HDMI, PS/2 Keyboard/Mouse, 2xRJ45 Ethernet, 2xRJ45 (COM), 4xUSB, Display Port, DC input (terminal block) |
System Power Input | |
| Input Voltage DC | 12...24 V |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows IoT Enterprise 10, Linux kernel 4.x |
Dimensions and weight | |
| Width | 210 mm |
| Height | 190 mm |
| Depth | 70 mm |
Operating Conditions | |
| Operating Temperature | -15...60 °C |
| Humidity | 10-95% |
| Vibration | 3 Grms/5~500Hz/random operation |
| Shock | Operating 40G (11ms). non-operating 80G with M.2 PCIe SSD |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
