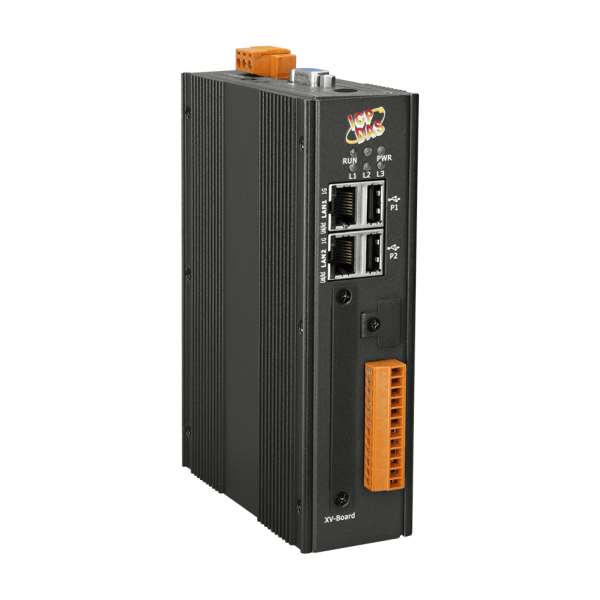

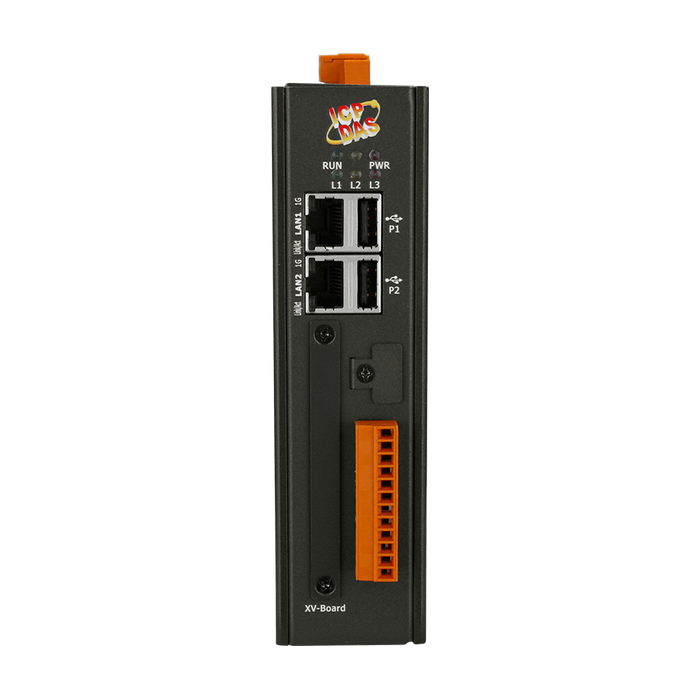

EMP-2848M

Ціна за запитом
Compact EtherCAT Master based PAC controller, Cortex-A53, 1GB LPDDR4, 8GB eMMC Flash, 4GB microSD, 1xGbE LAN, 2xUSB 2.0, 12-48VDC-in, Real-Time Linux (RT-Preempt, Kernel 4.14.98)

Specification

Construction

Construction ChassisMetal Chassis

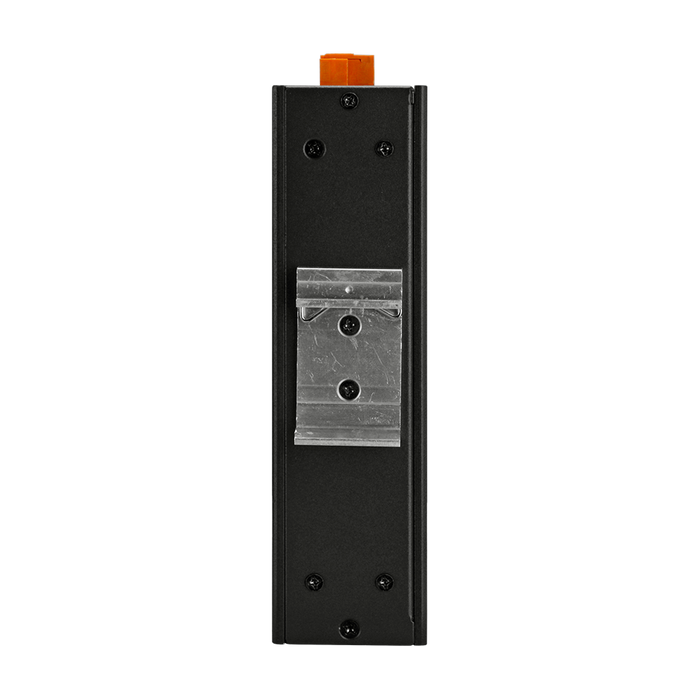

Mounting ConfigurationDIN-Rail mount
Protection Level of ChassisIP30

CPU

Processor InstalledARM Cortex-A53
Max CPU frequency1.6 GHz

Memory

Default on Board Memory1 GB

Installed drive

Flash Memory Capacity8 MB

Drive interfaces

MicroSD1

Software

Operating System InstalledLinux OS
Programming MethodIEC 61131-3, C#, C
Development SoftwareWin-GRAF

Ethernet

10/100/1000 Mbit/s1

Interfaces

COM Total3
RS-2321
RS-4852
USB Total2

Supported Protocols

Industrial ProtocolsEtherCAT master, Modbus TCP server, Modbus TCP client, Modbus RTU slave, Modbus RTU master, Modbus ASCII slave, Modbus ASCII master

Graphic

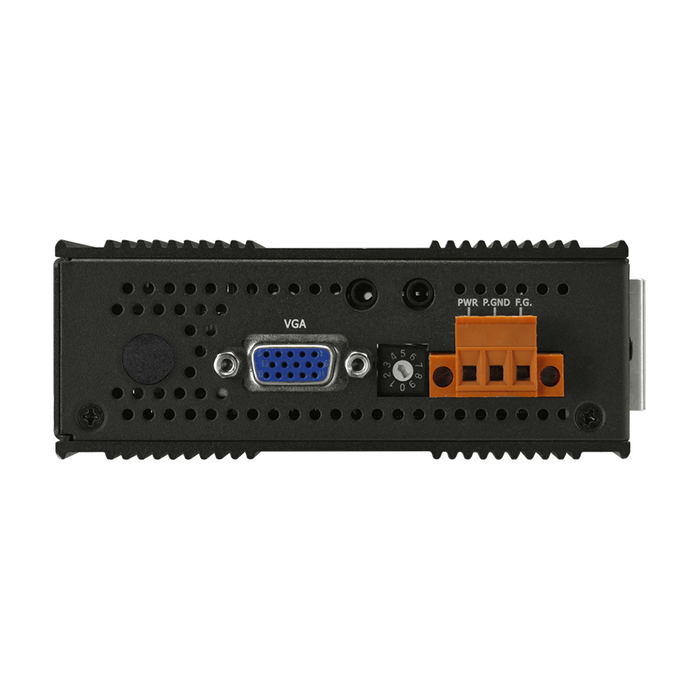

InterfacesVGA

Dimensions and weight

Width42 mm
Depth129 mm
Height164 mm

System Power Input

Input Voltage DC12...48 V

Operating Conditions

Operating Temperature-25...75 °C

Files

Documentation

📄 Datasheet EMP-2848M
