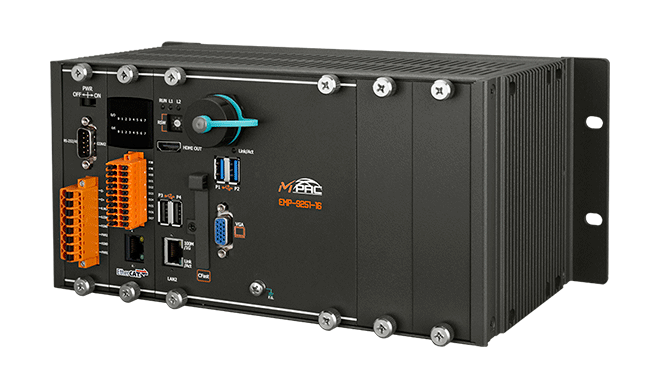

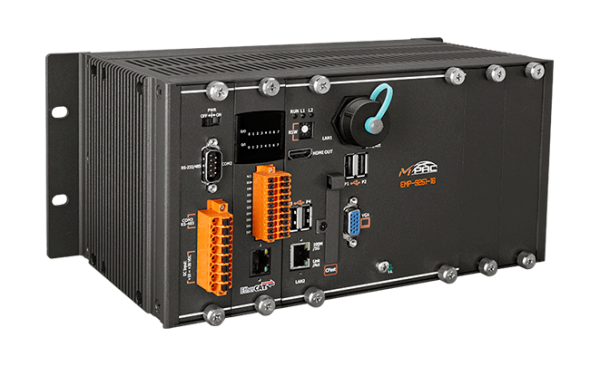

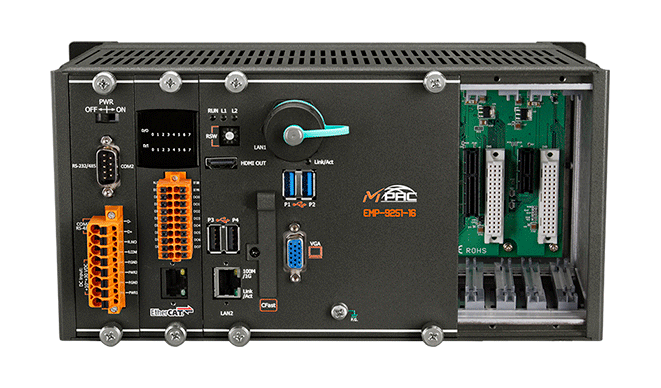

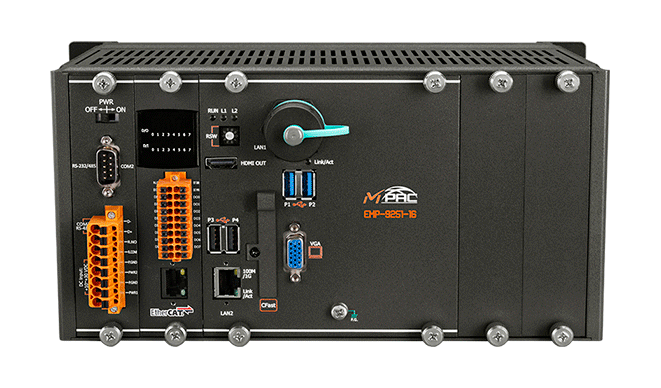

EMP-9251-16

Ціна за запитом
EtherCAT Master based 9000 series PAC controller, Intel Core i5-8365UE, 16GB DDR4, 64GB SSD, 32GB CF, VGA, HDMI, 2xGbE LAN, 2xCOM, 4xUSB 2.0, 8DI 19-24VDC, 8DO 24VDC, 10-30VDC-in, Win 10 IoT, 2 expansion slots

Specification

Construction

Construction ChassisMetal Chassis
Mounting ConfigurationWall, DIN-Rail mount

CPU

Processor InstalledIntel Core i5-8365UE
Max CPU frequency4.1 GHz

Memory

Default on Board Memory16 GB

Installed drive

Flash Memory Capacity64 MB
EEPROM Memory Capacity16 kB
MRAM Memory Capacity128 kB
1st Storage Capacity32 GB

Drive interfaces

CFast Slots1

Expansion Module

Quantity of Slots2
Supported ModuleI-9K series, I-97K series, e-9K series

Software

Operating System InstalledWindows IoT Enterprise 10
Programming MethodC/C++
Development SoftwareVC, Visual Studio .NET

Digital Input

Total channels of digital input8
Isolation of Digital Input3000 V
TypeWet contact
Level of Logic "0"0~11 V
Level of Logic "1"19~24 V

Digital Output

Total channels of digital output8
TypeOpen collector
Sink/SourceSink
Max. load current1000 mA

Ethernet

10/100/1000 Mbit/s2

Interfaces

COM Total2
RS-2321
RS-232/4851
USB Total4

Supported Protocols

Industrial ProtocolsEtherCAT master

Additional Functions

Watchdog timer typeHardware, Software

Connectors

Connectorsspring clamp terminal block

Graphic

InterfacesHDMI, VGA

Dimensions and weight

Width300 mm
Depth164 mm
Height133 mm

System Power Input

Input Voltage DC10...30 V
Power Supply Reserve input Voltage DC10...30 V
Redundant power inputYes

Operating Conditions

Operating Temperature-25...60 °C
