System Architecture | |

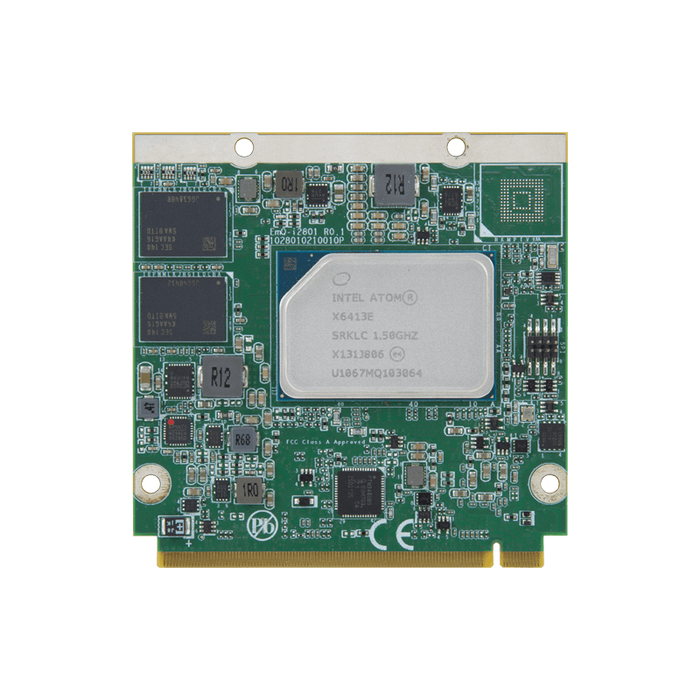

| Form Factor | Q7 CPU Module |
CPU | |
| СPU Generation/Family | Elkhart Lake |
| Processor Installed | Atom x6413E |
| Socket | FCBGA1493 |
| Max CPU frequency | 1.5 GHz |
Chipset | |
| Chipset | Intel Atom SoC |
Memory | |
| Form-factor | DDR4 |
| Socket Type | Soldered |
| ECC | No |
| Default on Board Memory | 4 GB |
| Assembly | Fixed on Board |
Graphic | |
| Graphic Controller | Integrated in CPU |
| Interfaces | 2xLVDS 24 bit, DDI |
Ethernet | |
| Controller Type | Intel i210 |
| Total Ethernet | 1 |
| 10/100/1000 Mbit/s | 1 |
Interfaces | |
| USB Total | 8 |
| USB 2.0 | 6 |
| USB v3.x | 2 |
Drive interfaces | |
| SATA 3 | 2 |
Extension Slots | |
| PCI Express x1 | 4 |
Software | |
| Operating System Compatibility | Windows 10, Ubuntu |
Dimensions and weight | |
| Width | 70 mm |
| Length | 70 mm |
Operating Conditions | |
| Operating Temperature | -40...85 °C |
| Humidity | 10-95% |
