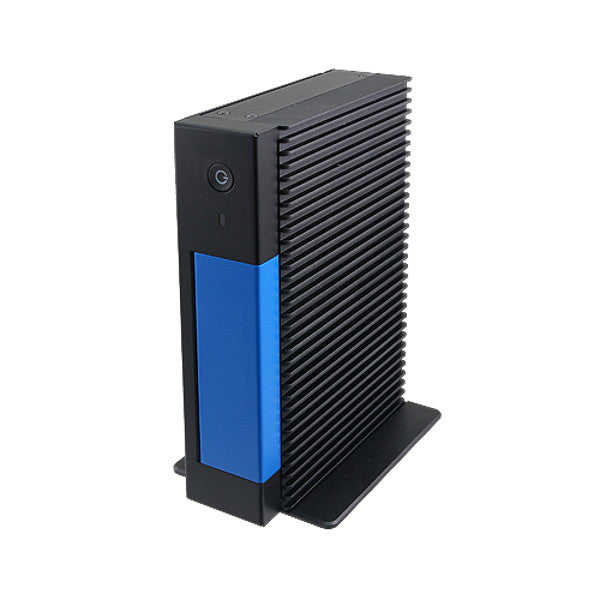

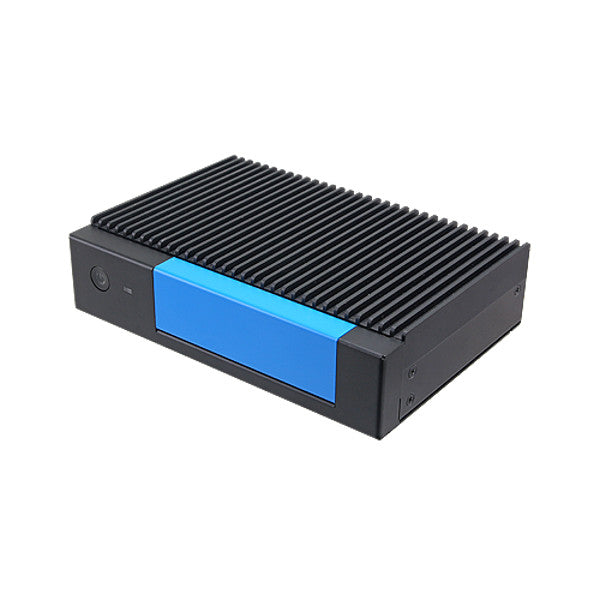

EPC-APL-33-A1-1R

EPC-APL-33-A1-1R

Avalue
Ціна за запитом
Embeded Mini-PC, Intel Celeron Processor N3350 2.4GHz, up to 8GB DDR3L RAM, 2xHDMI, VGA, 2xGbit LAN, 4xUSB 3.0, 1xRS232/RS442/485, 2.5" Drive Bay, mSATA (Full-Size Mini-PCIe),1x Half Size Mini PCIe,12..+26V DC-In

Specification

Construction

Construction ChassisMetal Chassis with Aluminium Heatsink
Mounting ConfigurationDesktop, DIN-Rail mount

CPU

Processor InstalledIntel Celeron N3350

Memory

Maximum Memory8 GB

Ethernet

Controller TypeIntel i211-AT 10/100/1000 Mbps
Total Ethernet2
10/100/1000 Mbit/s2

Interfaces

COM Total1
RS-232/422/4851
USB Total4

Extension Slots

Mini-PCIe/Mini Card2

Connectors

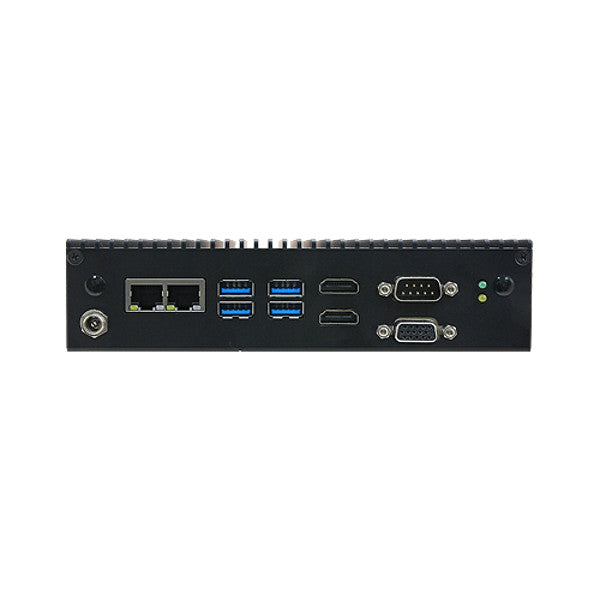

ConnectorsDB15 VGA, 2xHDMI, 2xRJ45 Ethernet, 4xUSB

Software

Operating System CompatibilityLinux OS, Windows 10

Dimensions and weight

Width177 mm
Height123 mm
Depth43.5 mm

Standards and Certifications

CertificationsCE, FCC Class B
Vibration And ShockIEC 60068-2-27

Files

Documentation

📄 EPC-APL-Datasheet.pdf
