Construction | |
| Construction Chassis | Metal Chassis with Aluminium Heatsink |
| Mounting Configuration | Desktop |
| Type | Fanless |
CPU | |
| Processor Installed | Intel Core i5-6300U |
Memory | |
| Socket Type | 1xDDR4 SODIMM 260-pin |
| Default on Board Memory | 4 GB |
| Maximum Memory | 16 GB |
Graphic | |
| Graphic Controller | Intel HD Graphics 520 |
Ethernet | |
| Controller Type | Intel i211-AT 10/100/1000 Mbps, Intel i219-LM |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 6 |
| USB 2.0 | 2 |
Audio | |
| Audio Controller | Realtek ALC892 |
Storage Cage | |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| M.2 | 1 |
| Mini-PCIe/Mini Card | 1 |

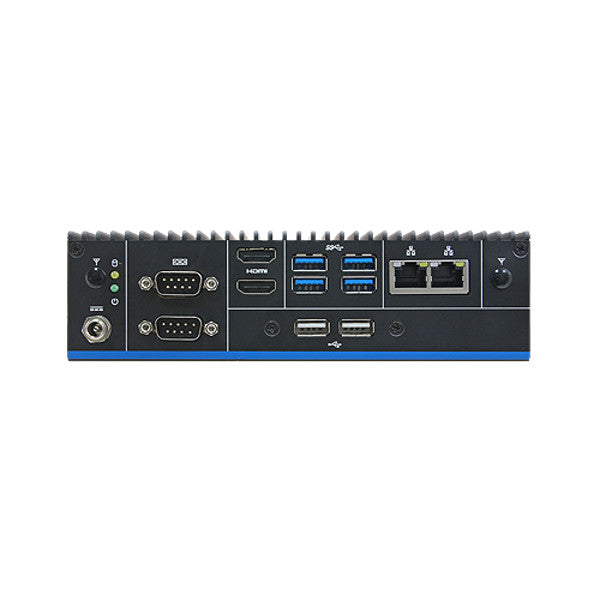

Connectors | |
| Connectors | 2xDB9, 2xHDMI, 2xRJ45, 6xUSB |
Dimensions and weight | |
| Width | 123 mm |
| Height | 50 mm |
| Depth | 177 mm |
Standards and Certifications | |
| Certifications | CE, FCC Class B |
| Vibration And Shock | IEC 60068-2-27, IEC 60068-2-64 |
