Construction | |
| Mounting Configuration | 19" Rackmount, Wall, DIN-Rail mount |
| Type | Fans |
CPU | |
| СPU Generation/Family | Coffee Lake, Coffee Lake Refresh |
| Processor Installed | Intel Core i5-8500T |
| Socket | LGA1151 |
| Max CPU frequency | 3.5 GHz |
Chipset | |
| Chipset | Intel H310 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| Maximum Memory | 32 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Realtek 8111G |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232 | 2 |
| RS-232/422/485 | 2 |
| USB Total | 6 |
| USB 2.0 | 2 |
| USB v3.x | 4 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| M.2 | 2 |
LED / Controls | |
| LED | 1xHDD LED, Power LED |
| Controls | On/Off |
Connectors | |

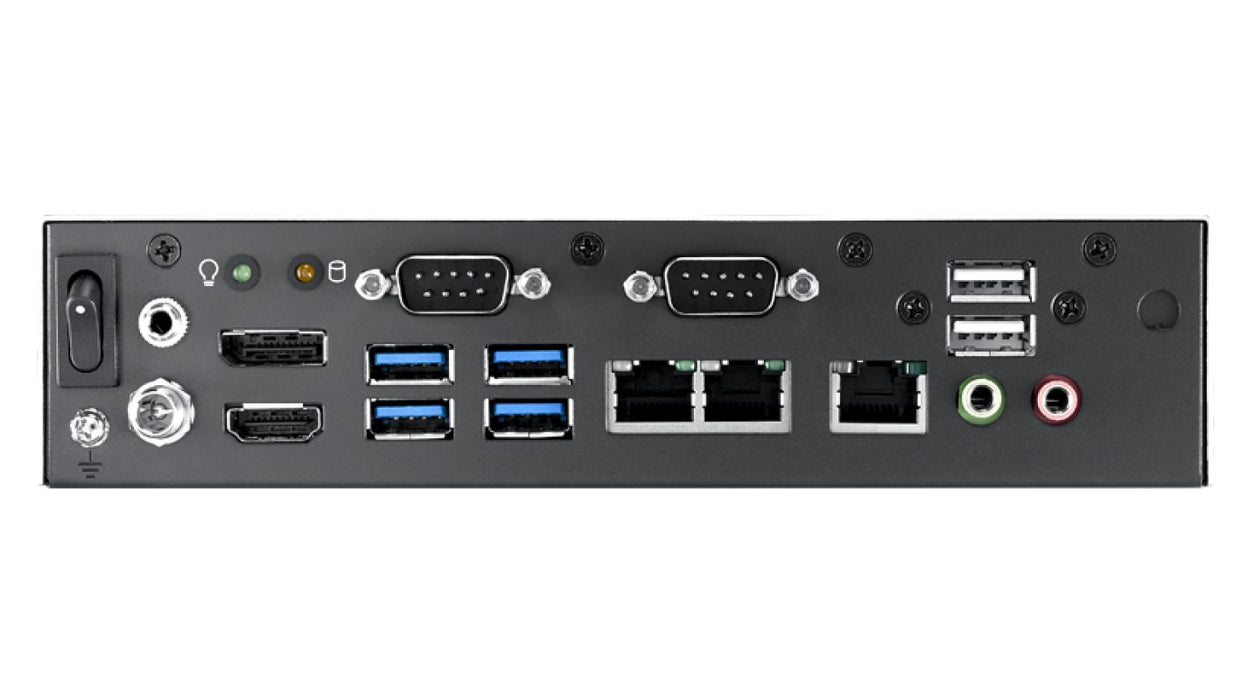

| Connectors | 2xDB9, HDMI, 2xRJ45 Ethernet, 6xUSB, DC Input, Display Port |
System Power Input | |
| Input Voltage DC | 12...12 V |
Dimensions and weight | |
| Width | 188 mm |
| Height | 44.2 mm |
| Depth | 188 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
Standards and Certifications | |
| Certifications | CE, FCC |
