Construction | |
| Construction Chassis | Metal Chassis with Aluminium Heatsink |
| Mounting Configuration | Wall |
CPU | |
| Processor Installed | Intel Celeron J1900 |
Memory | |
| Maximum Memory | 8 GB |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 4 |
| RS-232 | 3 |
| RS-232/422/485 | 1 |
| USB Total | 6 |
| USB 2.0 | 5 |
Digital Input-Output | |
| Channels of DIO | 8 |
Extension Slots | |
| Mini-PCIe/Mini Card | 1 |
Connectors | |

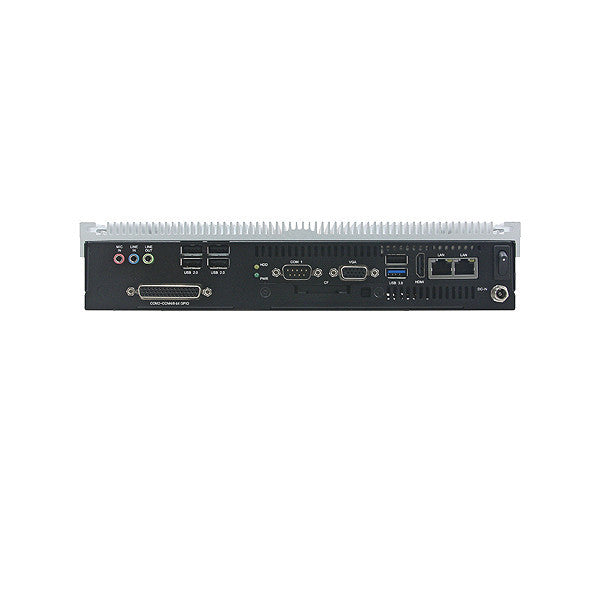

| Connectors | 4xDB9, DB15 VGA, HDMI, 6xUSB, Mic In, Line Out |
Software | |
| Operating System Compatibility | Windows 7, Linux OS, Windows 8.1 |
Dimensions and weight | |
| Width | 271 mm |
| Height | 150 mm |
| Depth | 55 mm |
Operating Conditions | |
| Vibration | With SSD/mSATA : 5Grms. IEC 60068-2-64. Random. 5 ~ 500Hz. 1hr/axis |
| Shock | With SSD/mSATA : 50Grms. IEC 60068-2-27. Half Sine. 11ms |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
