System Architecture | |
| Form Factor | Micro ATX |
CPU | |
| СPU Generation/Family | Skylake, Kaby Lake |
| CPU Support Type | Celeron, Core i3, Core i5, Core i7, Pentium, Xeon |
| Socket | LGA1151 |
Chipset | |
| Chipset | Intel C236 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 4xDIMM |
| ECC | Yes |
| Maximum Memory | 64 GB |
Graphic | |
| Interfaces | 2xHDMI, VGA |
Ethernet | |
| Controller Type | Intel i211-AT 10/100/1000 Mbps, Intel i219-LM |
| Total Ethernet | 4 |
| 10/100/1000 Mbit/s | 4 |
Interfaces | |
| COM Total | 10 |
| RS-232 | 8 |
| RS-232/422/485 | 2 |
| USB Total | 13 |
| USB 2.0 | 5 |
| USB v3.x | 8 |
Drive interfaces | |
| RAID Levels | 1, 5, 10 |
Extension Slots | |
| Total | 4 |
| PCI Express x16 | 1 |
| PCI Express x4 | 1 |
| Mini-PCIe/Mini Card | 1 |
| PCI | 2 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |
| Internal Ports | USB 2.0, 24-pin ATX, 2x14-pin RS-232/422/485, 2x4-pin USB 2.0, GPIO, 8-pin ATX, 6xSATA 3, 2x40-pin RS-232 |

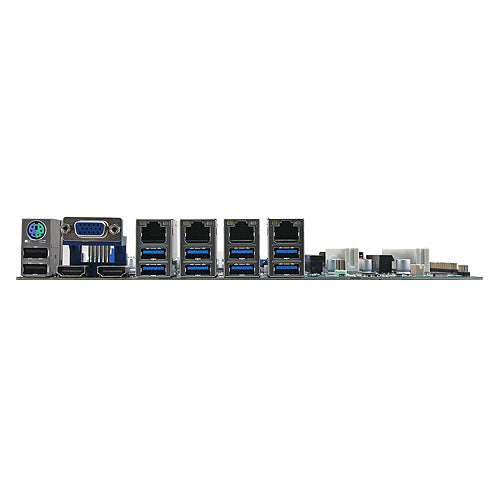

| Connectors | DB15 VGA, 2xHDMI, PS/2 Keyboard/Mouse, 4xRJ45 Ethernet, 8xUSB |
Dimensions and weight | |
| Width | 244 mm |
| Length | 244 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
Standards and Certifications | |
| Certifications | CE |
